Fig. 7.


Download original image

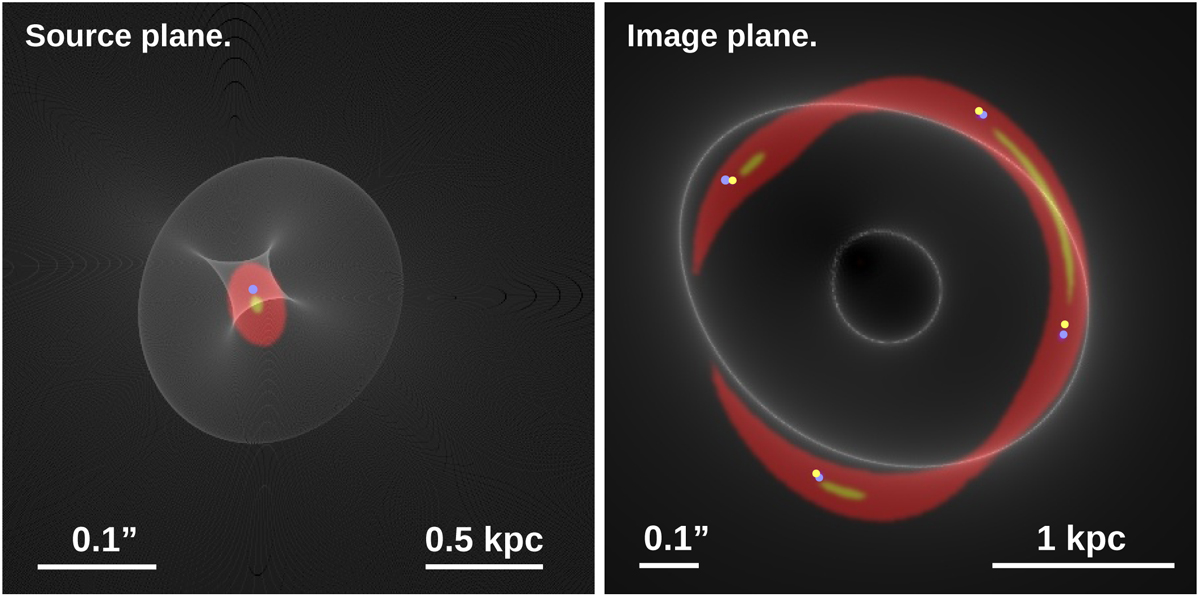

Caustics (left) and critical curves (right) for the model where only position is used. A simple source with just three components, nucleus (orange), halo (red) and SN (blue) is shown in the left panel (source plane). The predicted image is shown in the right panel (image plane). The yellow dots in the right panel mark the observed position of the four SN images.
