Fig. 10


Download original image

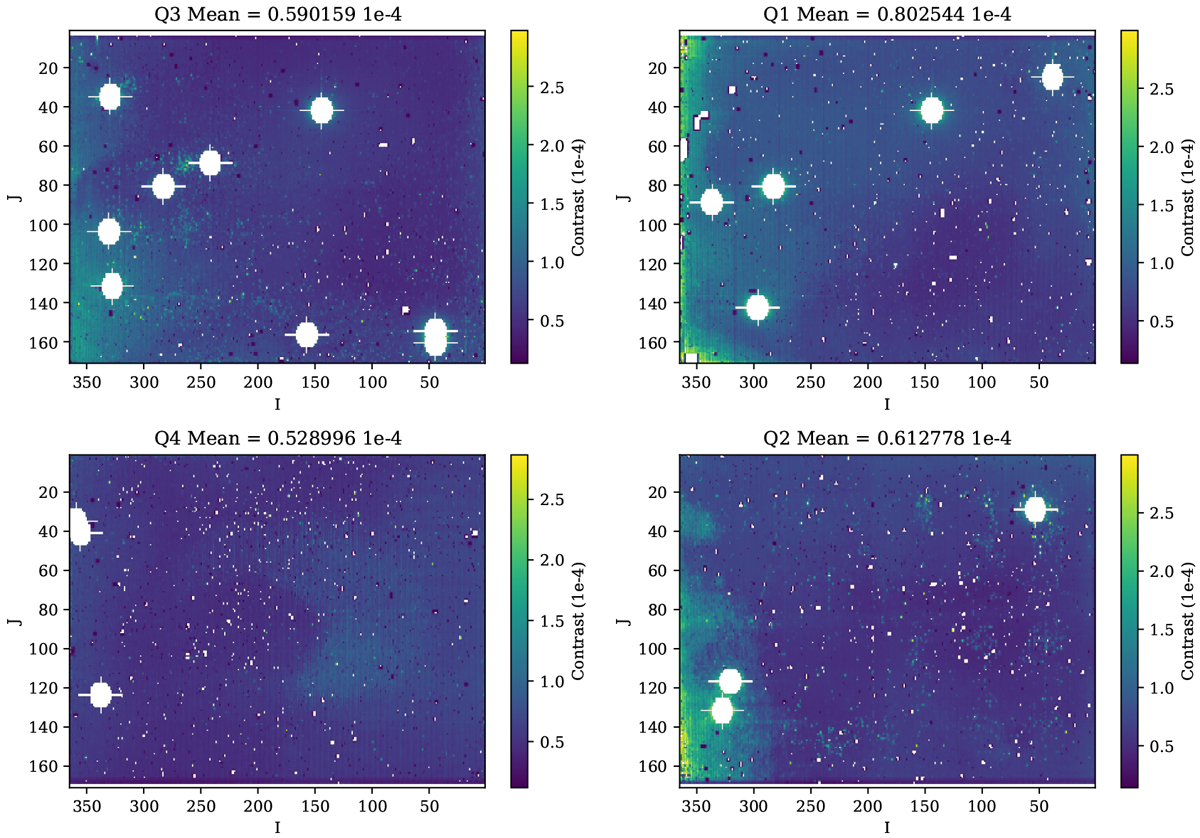

Measured attenuation performance of the four MSA quadrants, as derived from internal lamp exposures taken in imaging mode during instrument testing. The axes are labelled according to the MSA plane shutter through which the incident light passed. Pixels in white do not have a measured attenuation due to either flux from heavily saturated failed open shutters or bad pixels on the detector.
