Free Access

Fig. 10


Download original image

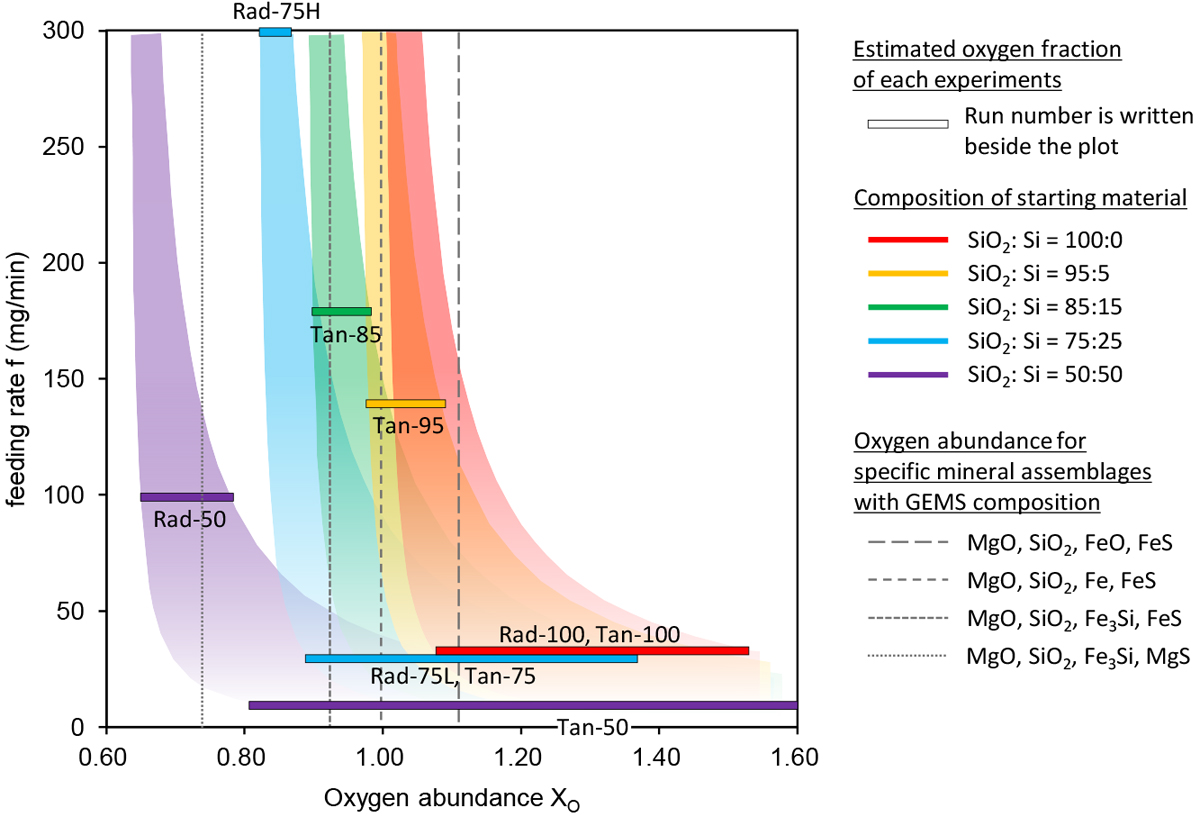

Estimated redox condition for each experiment. The range of oxygen abundance XO (horizontal axis) for each starting material with the same SiO2/(Si + SiO2) ratio is calculated for the estimated inflow oxygen rates of 0.5 × 10−4 molmin−1 (left edge) and 3.6 × 10−4 molmin−1 (right edge). The redox condition becomes oxidizing with an increase in XO. Even if the same starting material is used, the redox condition becomes more oxidized with a decrease in feeding rate, which is due to the relatively large contribution of the inflow oxygen. The redox condition (XO) of each run is shown as a bar according to its starting material and feeding rate. The values of XO for specific mineral assemblages expected from the GEMS composition are also shown for comparison.

Current usage metrics show cumulative count of Article Views (full-text article views including HTML views, PDF and ePub downloads, according to the available data) and Abstracts Views on Vision4Press platform.

Data correspond to usage on the plateform after 2015. The current usage metrics is available 48-96 hours after online publication and is updated daily on week days.

Initial download of the metrics may take a while.
