Fig. 9.
Download original image

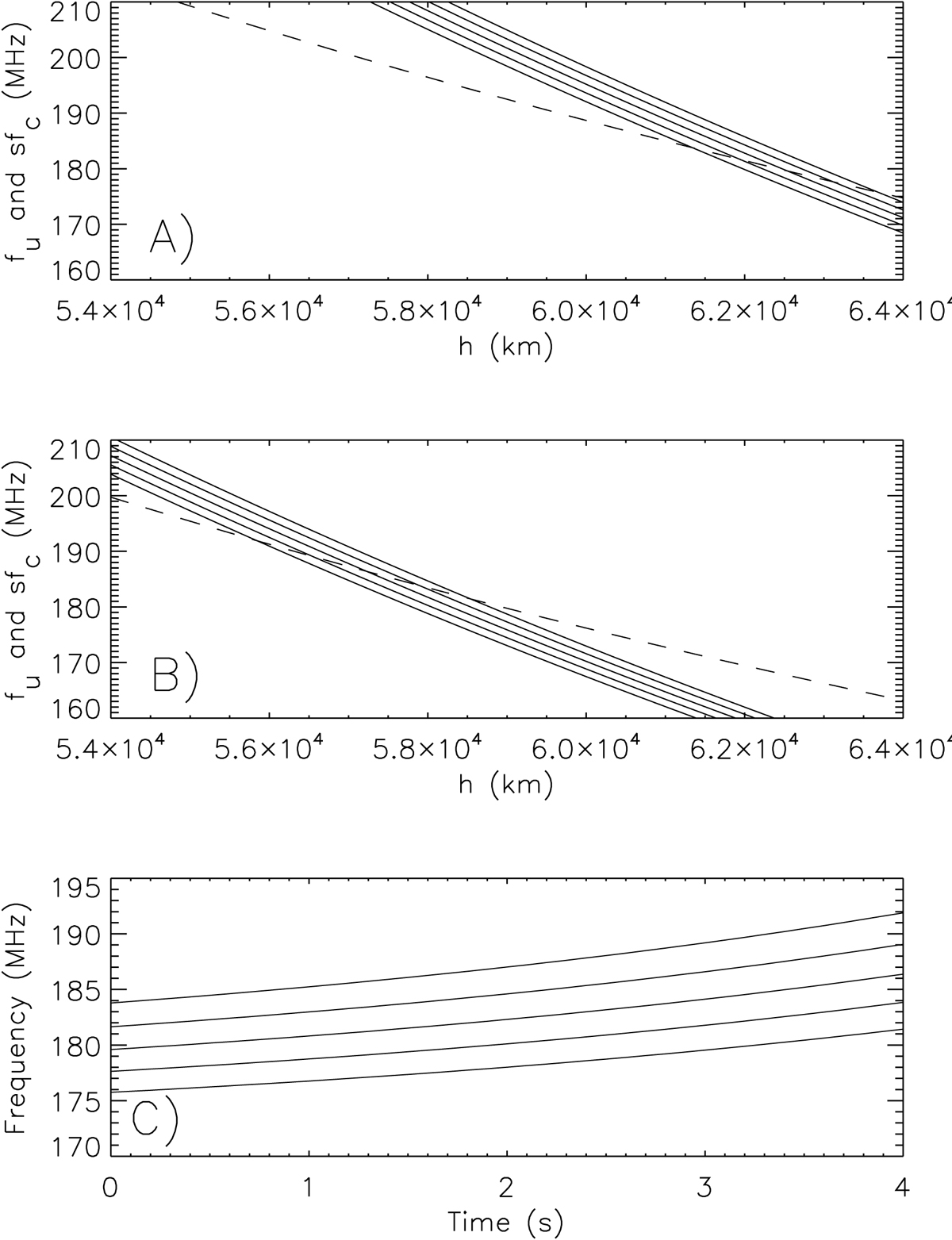

Zebra case from 21 June 2011. (A) Model upper-hybrid (dashed line) and s-harmonic of electron-cyclotron (full lines) frequencies at the starting zebra time (03:22:34.8 UT). (B) Model upper-hybrid (dashed line), and s-harmonic of electron-cyclotron (full lines) frequencies at the ending zebra time (03:22:38.8 UT). (C) Modeled zebra stripes during the plasma density and magnetic field decrease (Process A) in the time interval 03:22:34.8–03:22:38.8 UT.
