Fig. 10.
Download original image

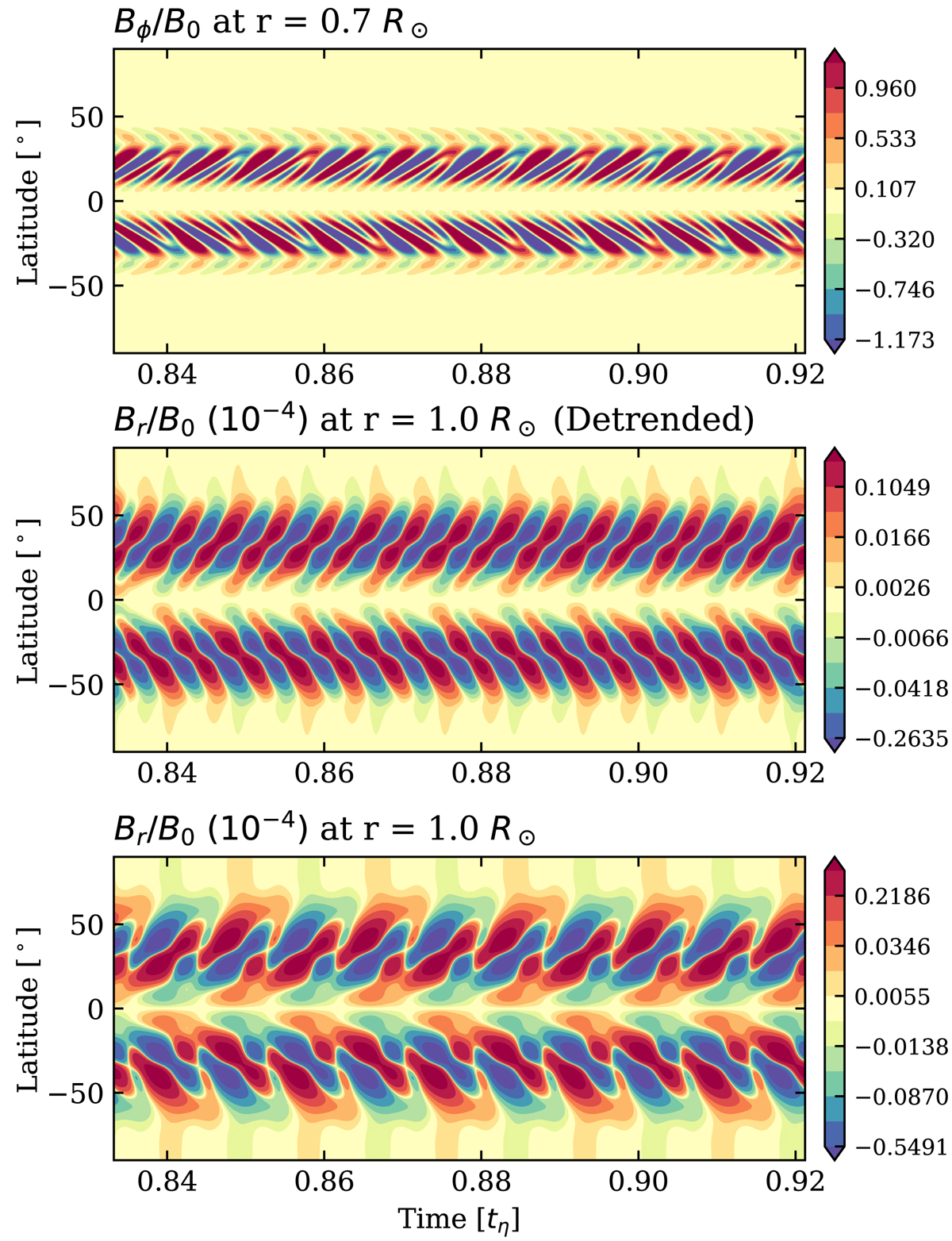

Butterfly diagram of solar αΩ model at the base of the convection zone with r1 = 0.7, r2 = 0.76, Cα = 15, and D = 2, 1.106. Respectively, Bϕ at r = 0.7, detrended Br at the surface and full Br at the surface (arbitrary units). A logarithmic color scale has been chosen to represent the middle and bottom panels. The middle panel is detrended from the long cycle.
