Fig. 7


Download original image

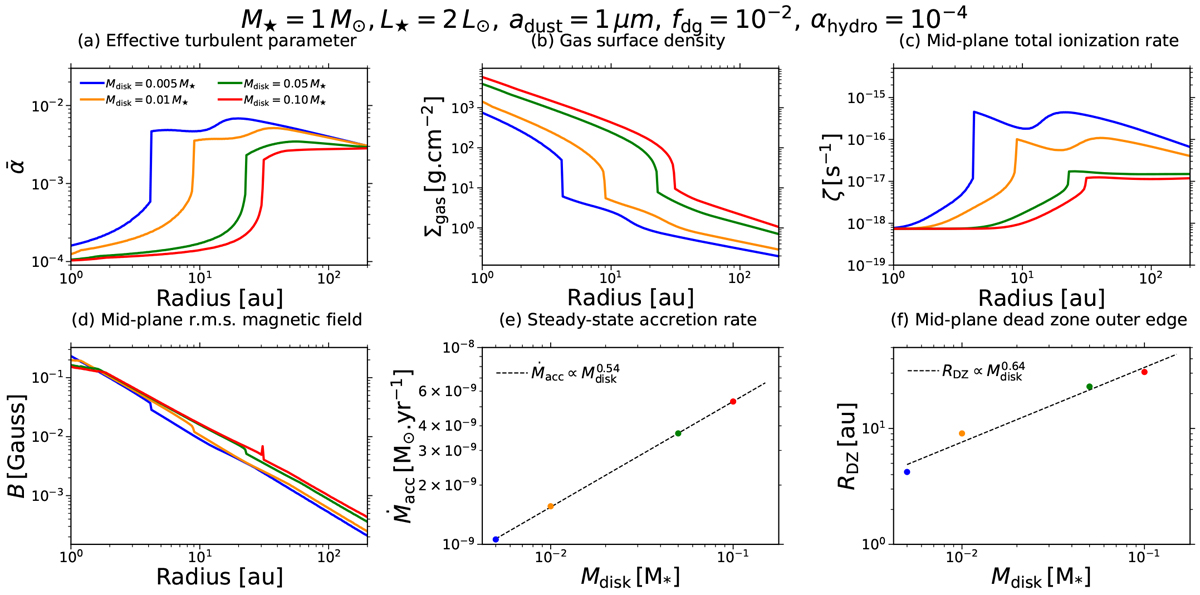

Effect of the total disk gas mass on the equilibrium solution when varying the parameter Mdisk from 0.005 M (gas-poor disk) to 0.10 M (gas-rich disk close to the GI limit): The case Mdisk = 0.005 M is shown in blue, Mdisk = 0.01 M in dark orange, Mdisk = 0.05 M in green (fiducial model), and Mdisk = 0.10 M in red. The panels show the various steady-state profiles of some key quantities, for the model parameters M = 1 M, L = 2 L, adust =1 μm, fdg = 10−2, and αhydro = 10−4. Panel a: pressure-weighted vertically integrated turbulent parameter, (Eq. (6)). Panel b: gas surface density, Σgas (Eq. (42)). Panel c: mid-plane total ionization rate, ζ (Eq. (10)). Panel d: mid-plane optimal r.m.s. magnetic field strength, B, that is required for the MRI activity to be at the maximal efficiency as permitted by Ohmic resistivity and ambipolar diffusion. Panel e: accretion rate, acc (Eq. (43)). Panel f: mid-plane radial dead zone outer edge location, RDZ, defined as the mid-plane radial location where both the Ohmic and ambipolar condition are met for the first time (Sect. 3.1). The dashed black lines in panels e and f correspond to a power-law fit of acc and RDZ as a functionof Mdisk, respectively.
