Fig. 6
Download original image

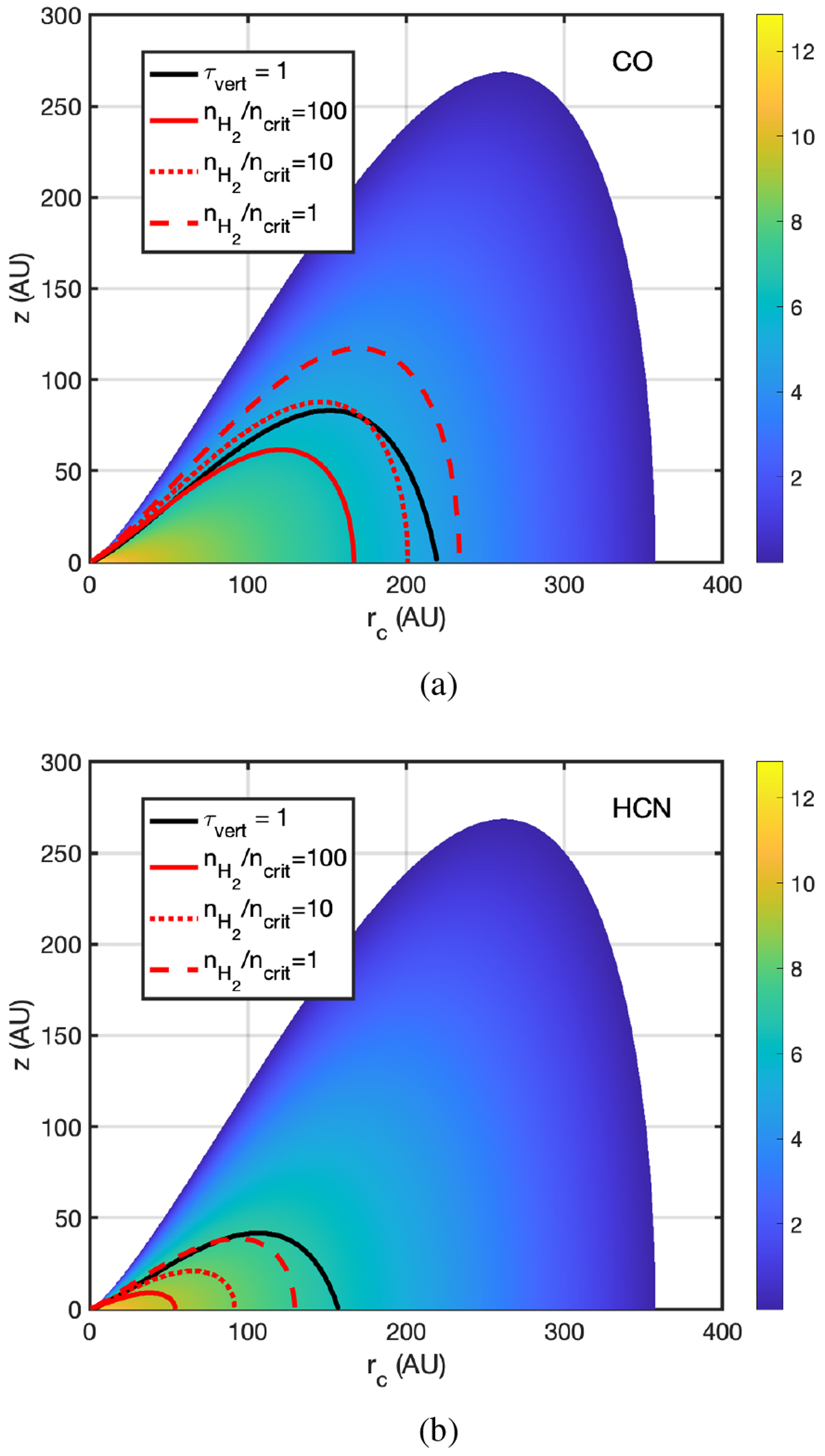

Density structure used in the protoplanetary disk polarization simulations, overlaid with the τvert = 1 surface contour and the contours of critical density surfaces for CO (a) and HCN (b). The colorbar in the figure refers to the number density in units of cm−3.
