Fig. 3
Download original image

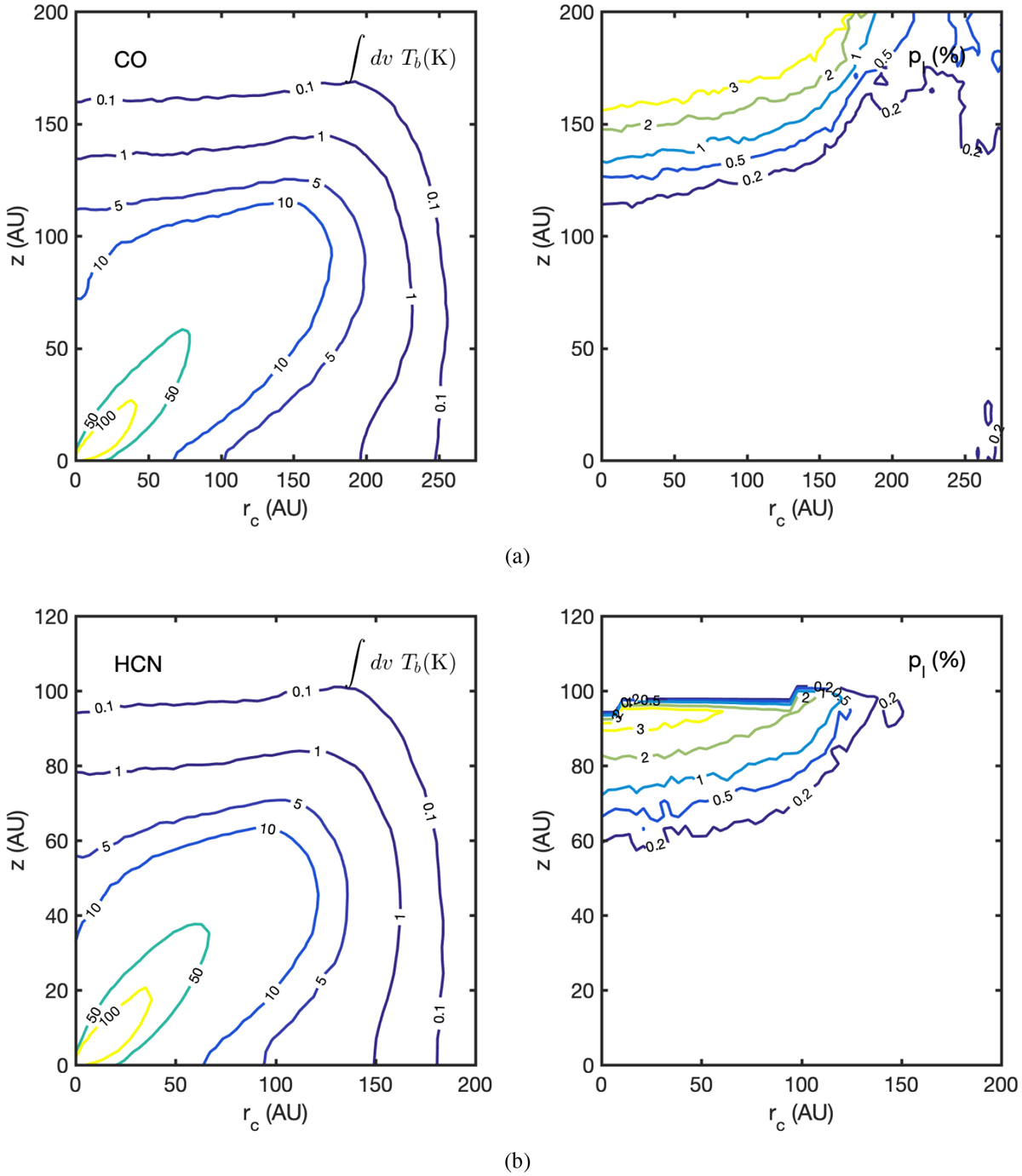

Integrated intensity maps of an edge-on protoplanetary disk (left side) and the associated polarization fraction at the maximum intensity at that position (right side). We plotted the results for the CO J = 3− 2 transition (a) and the J = 4−3 transition ofHCN (b). The magnetic field has a toroidal morphology.
