Fig. 6.

Download original image

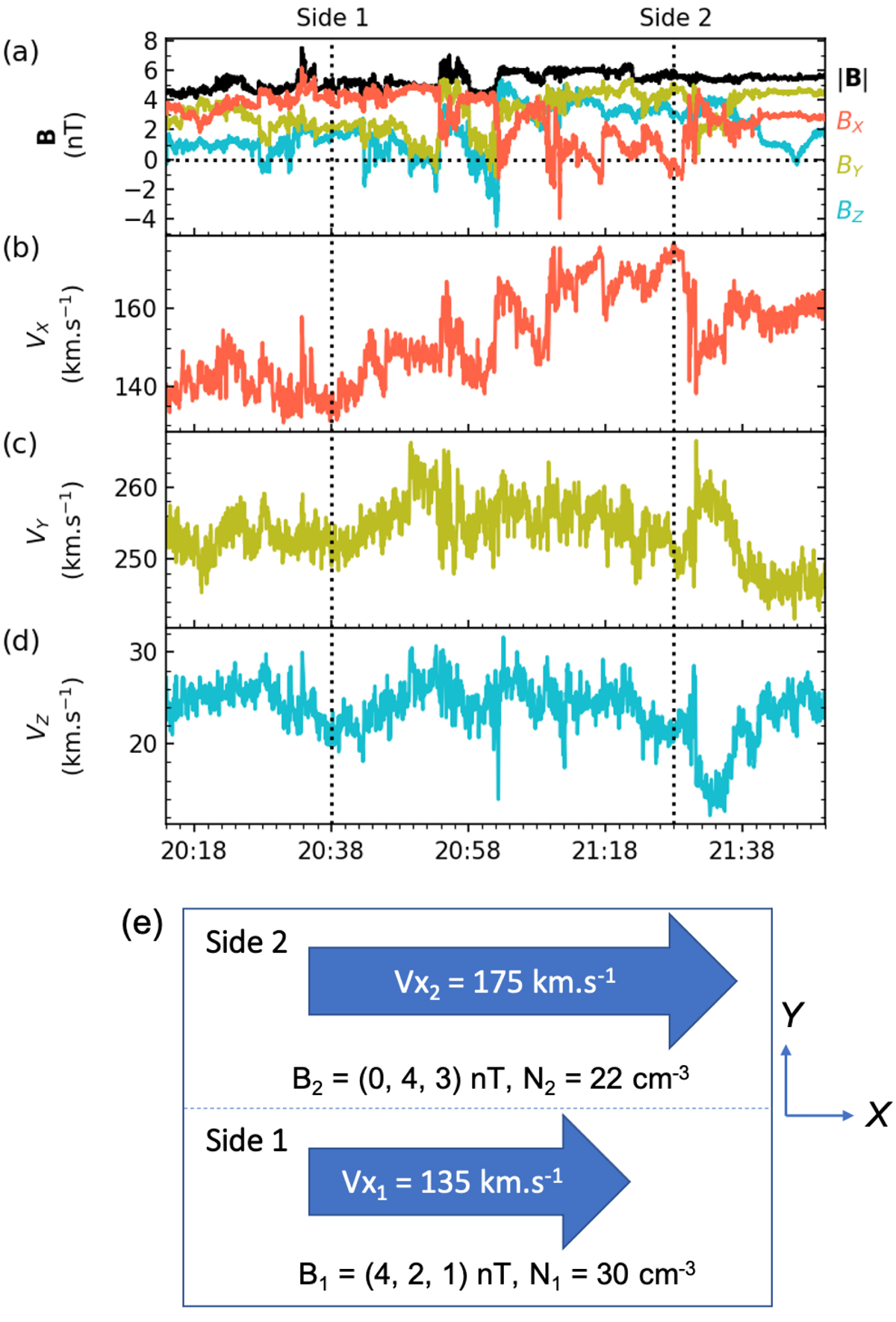

Magnetic and velocity fields in the local shear frame obtained from the application of the MVA to the ion bulk velocity. (a) Magnetic field in the maximum (X), intermediate (Y), and minimum (Z) variance directions and its magnitude. (b–d) Velocity field in the X, Y, and Z directions, respectively. (e) Simplified shear boundary layer configuration obtained from the transformation to the maximum shear frame.
