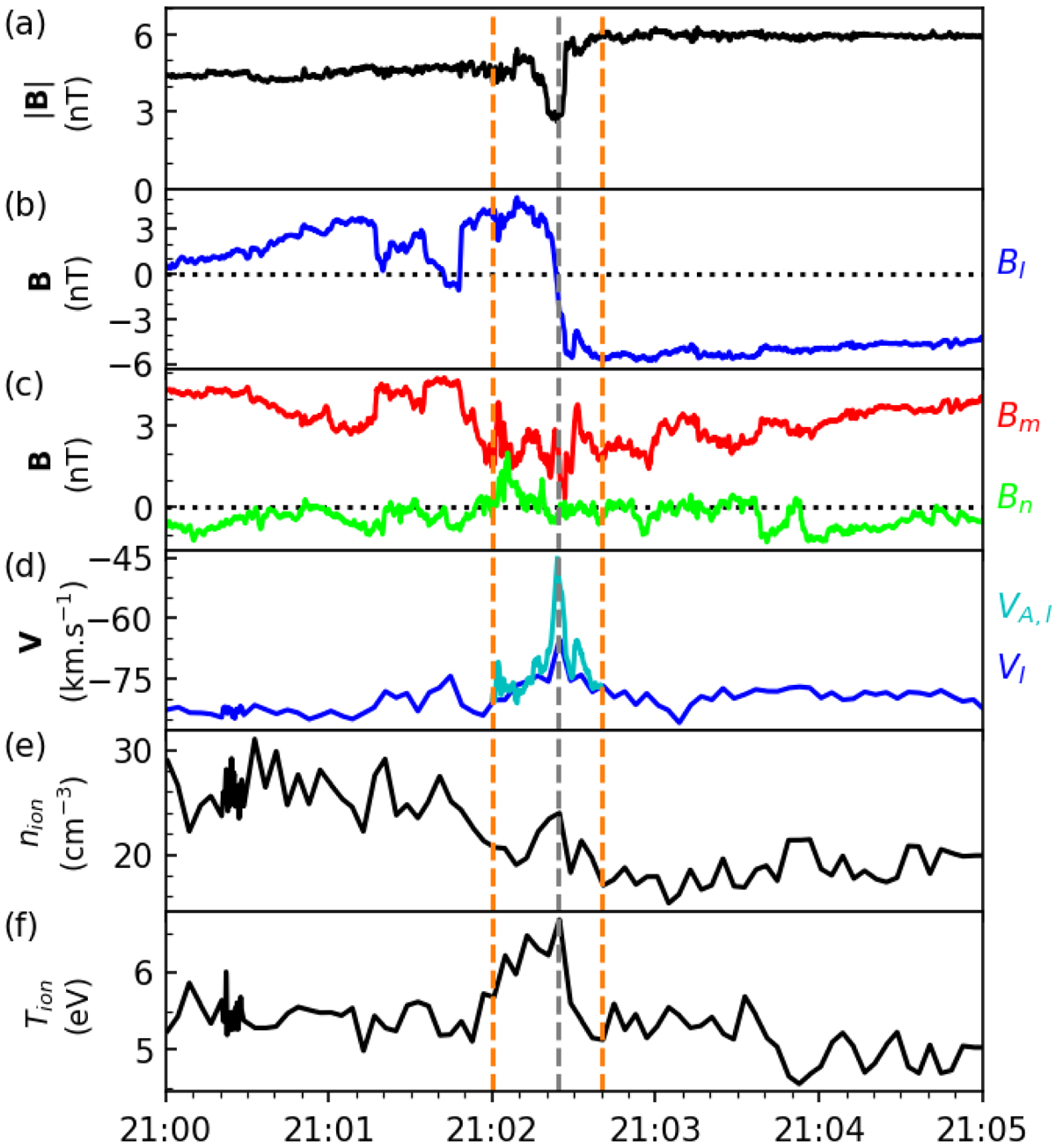

Fig. 5.
Download original image
Magnetic reconnection signatures at wave edge (3) in Fig. 4. (a) Magnetic field strength. (b) Magnetic field reconnecting
-component. (c) Magnetic field
,
components. (d) Ion bulk velocity Vl component with the predicted velocity jet (VA, l; cyan). (e) Ion number density. (f) Ion temperature. Dashed orange lines mark the extent of the ion jet. A dashed gray line marks the maximum ion velocity during the jet.
