Fig. B.2


Download original image

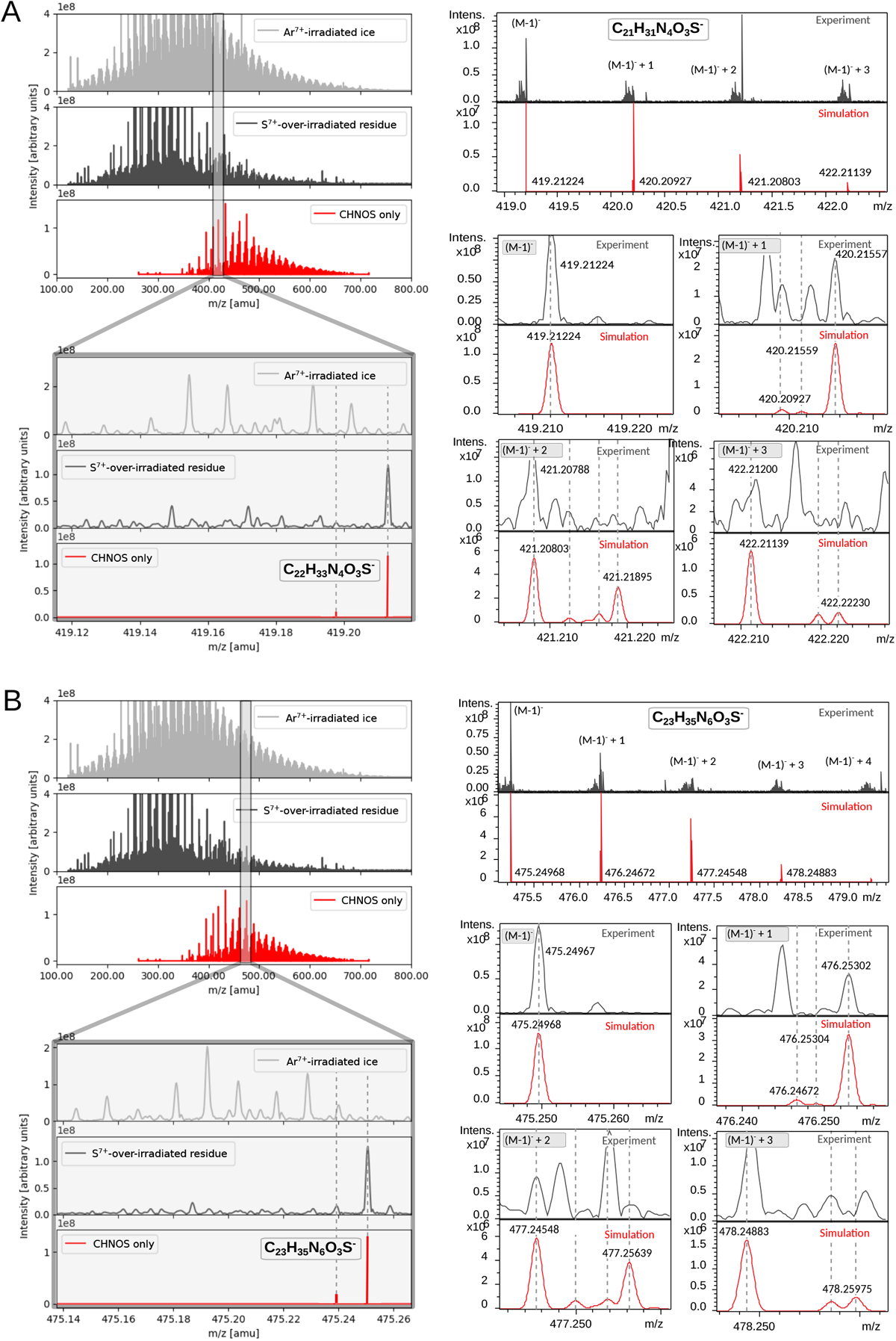

Detection of [C21H31N4O3S] (A) and [C23H35N6O3S] (B) molecule ions. Detection by ESI-FT-ICR-MS of organosulfur (CHNOS) compounds, exemplarily shown for [C21H31N4O3S] (B) and [C23H35N6O3S] (B) molecular ions. The CHNOS-only spectrum (left panel, 3rd row, red) illustrates 908 CHNOS-assigned m/z signals that were absent in the Ar7+-irradiated ice (reference sample). For the isotopic fine structure: darkgray = experimental spectrum; red = simulated isotopic pattern.
