Fig. 6

Download original image

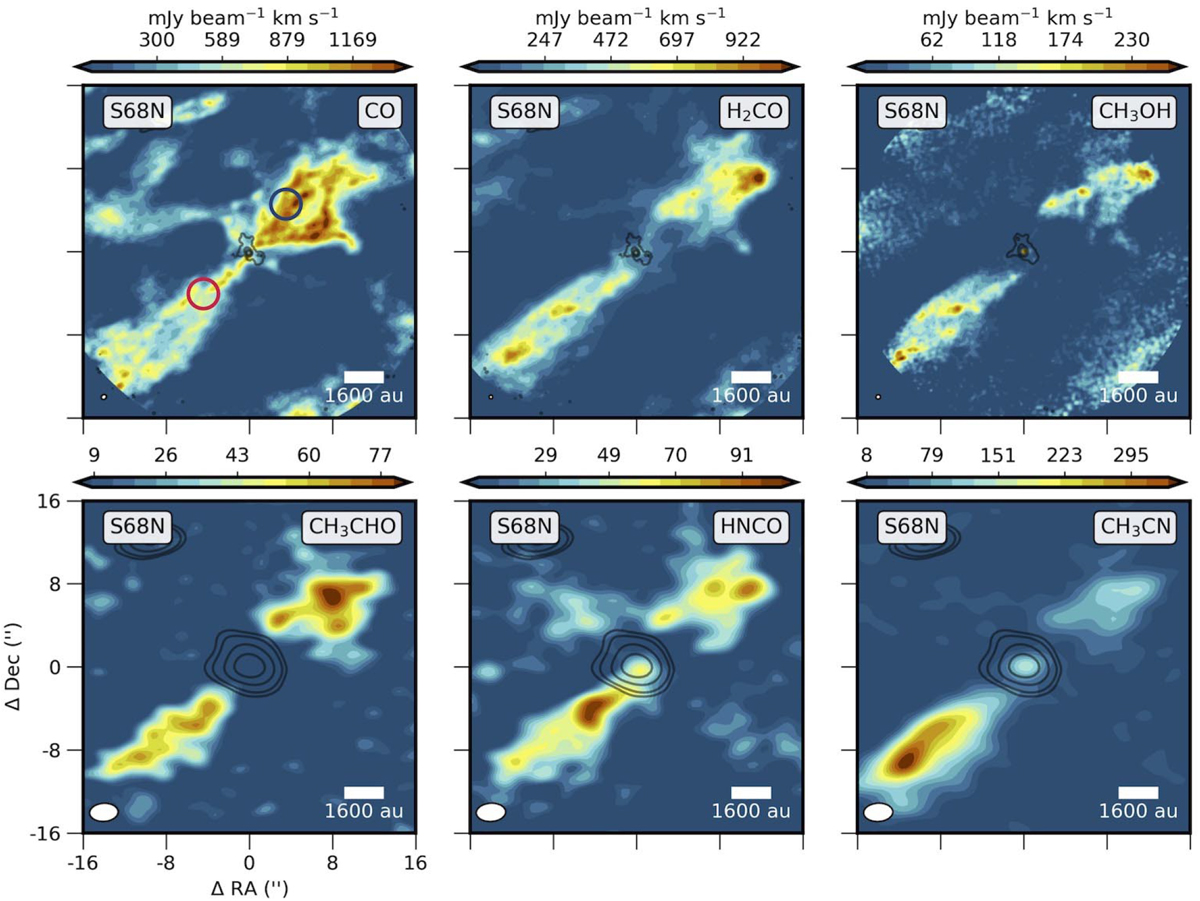

Maps of the ice mantle tracers toward the S68N outflow, with the CO low-velocity outflow map for reference. Top: CO, H2CO, and CH3OH moment-0 maps obtained in band 6 at 0.′′5 resolution. Circles show regions from which spectra were obtained for the analysis in Sect. 7.1. Bottom: CH3CHO, HNCO, and CH3CN moment-0 maps obtained in band 3 at 2.′′5 resolution. The emission is integrated from −10 to −1 km s−1 and from 1 to 10 km s−1 with respect to vsys.
