Fig. 20
Download original image

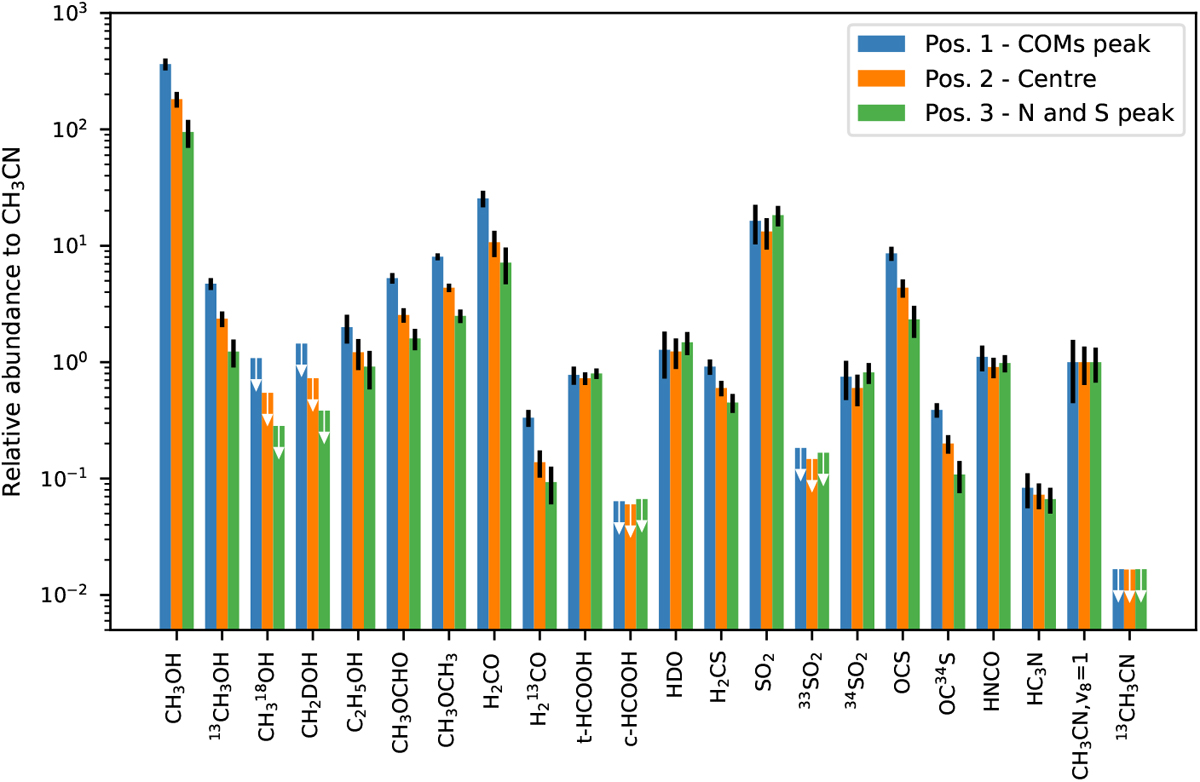

Relative abundances of each molecule relative to the column density of CH3CN at each respective position. The white arrows and black bars are as in Fig. 19.
