Fig. 4


Download original image

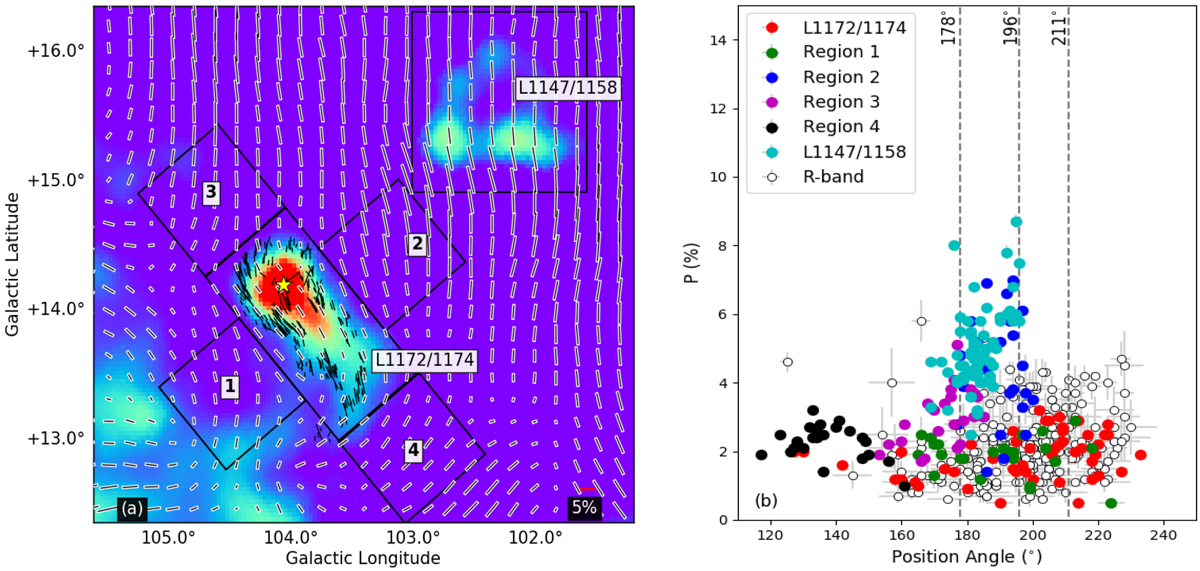

Variation in the projected magnetic field geometry toward L1172/1174 shown in a wider (4° × 4°) area. (a) Magnetic field map (lines in black with white border) of the region covering L1147/1158 and L1172/1174 inferred from the Planck polarization measurements. The magnetic field map of L1172/1174 produced using our R-band polarizationmeasurements are also shown using black lines. (b) Regions from which we obtained Planck polarization measurements shown as boxes (1–4, L1172/1174, and L1147/1158), plotted along with our R-band polarization measurements in L1172/1174.
