Fig. 2.

Download original image

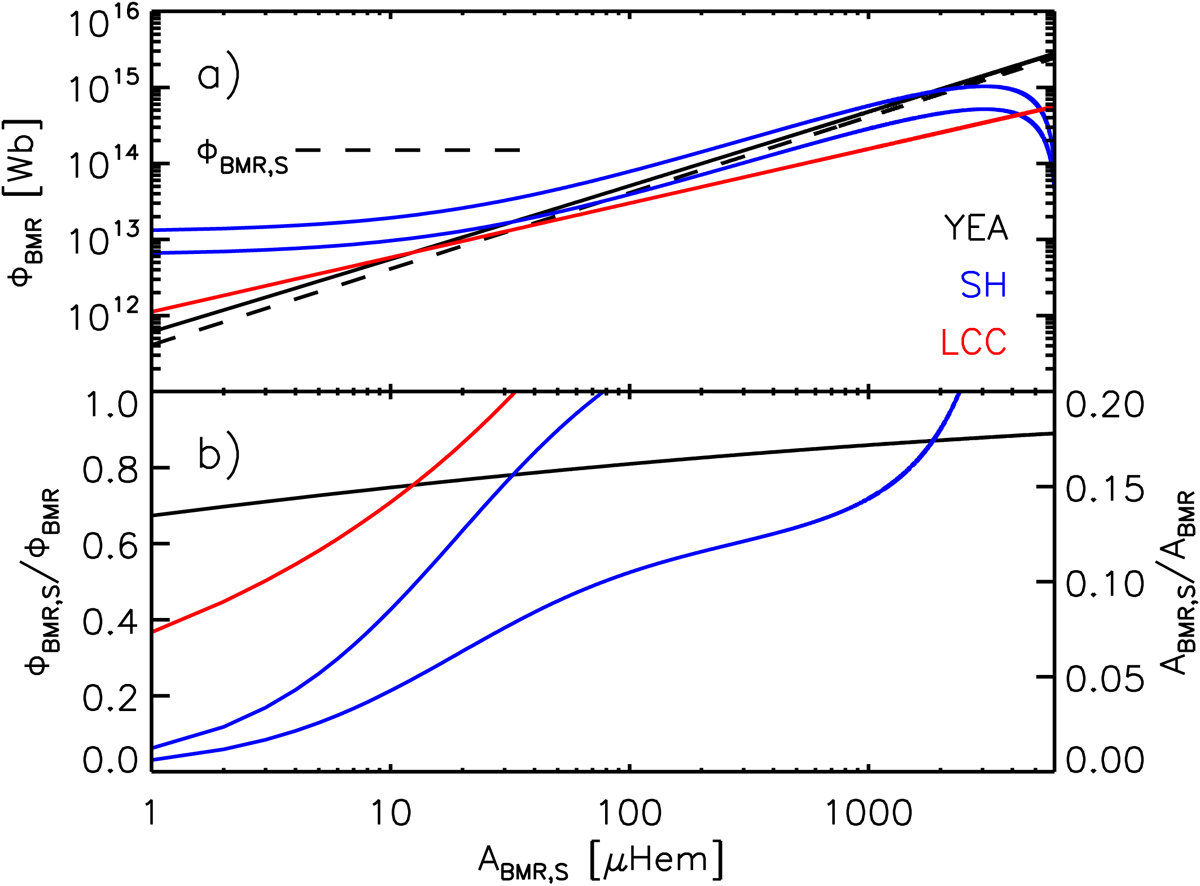

Relationship between BMR magnetic flux and sunspot area. (a) Amount of magnetic flux in newly emerged BMRs, ΦBMR, as a function of the area of the enclosed sunspots, ABMR,S, as indicated by the empirical relationship between ΦBMR and ABMR,S presented in this study (black solid line, Eq. (8)) and the constraints on ΦBMR reported by SH (blue, Eq. (10)) and LCC (red, Eq. (13)). For the estimate of ΦBMR based on the SH result, the lower and upper bounds, corresponding to k = 1 and k = 2, are given. The dashed line follows the amount of magnetic flux in newly emerged BMRs contained in the embedded sunspots, ΦBMR,S (Eq. (7)). (b) Corresponding plot of . To an approximation,
is directly proportional to the fraction of the area of each BMR occupied by their sunspots,
, indicated on the right axis (Eq. (9)) (see Sects. 2.2 and 2.3 for details).
