Fig. 9


Download original image

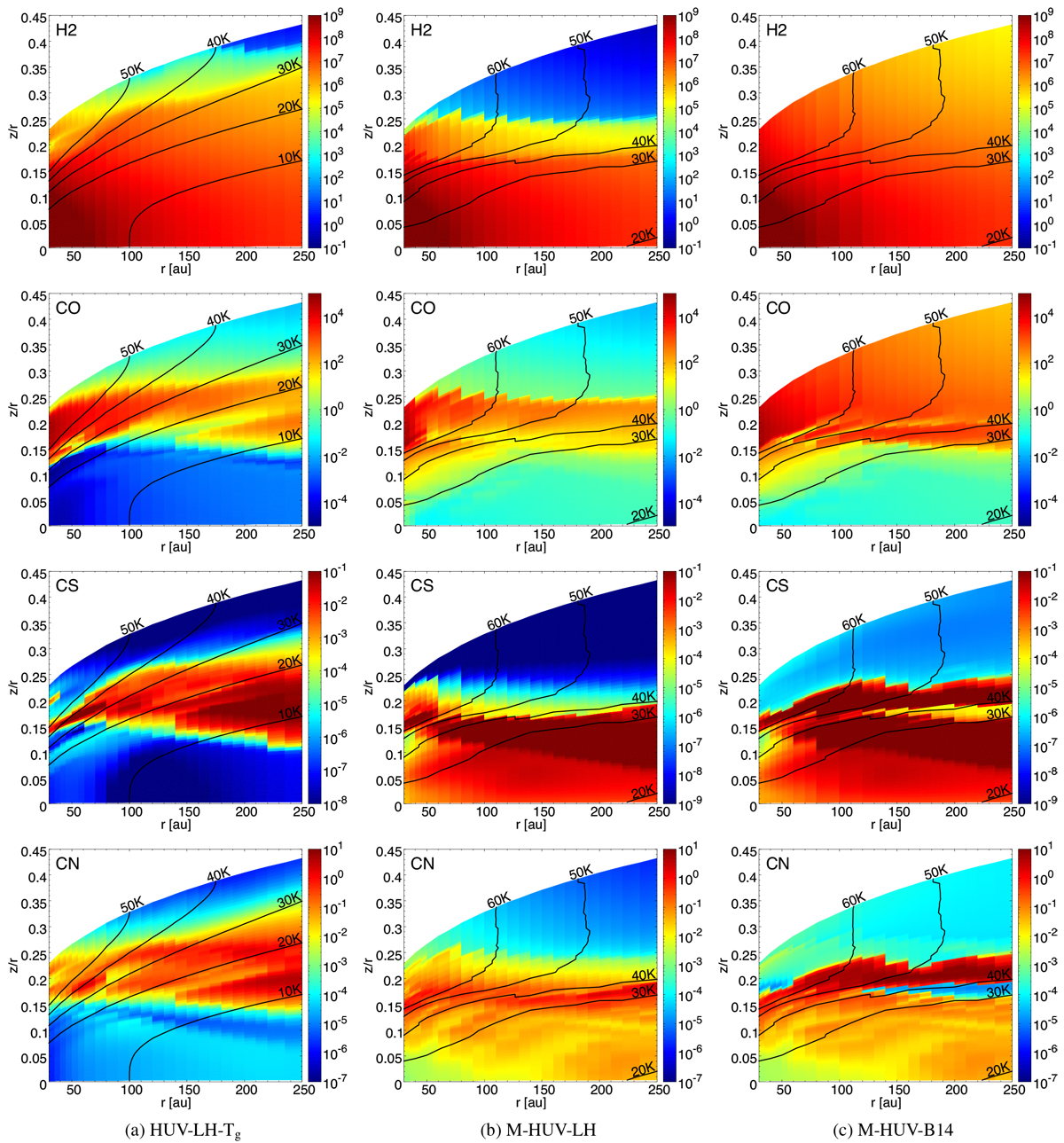

Density (cm−3) of H2, CO, CS, andCN in the gas phase of HUV-LH-Tg (left column) and of the multi-grain models in HUV regime. The black contours represent the dust temperature (Td = Tg in the left column and Td = Ta in the middle and right columns).
