Fig. D.2

Download original image

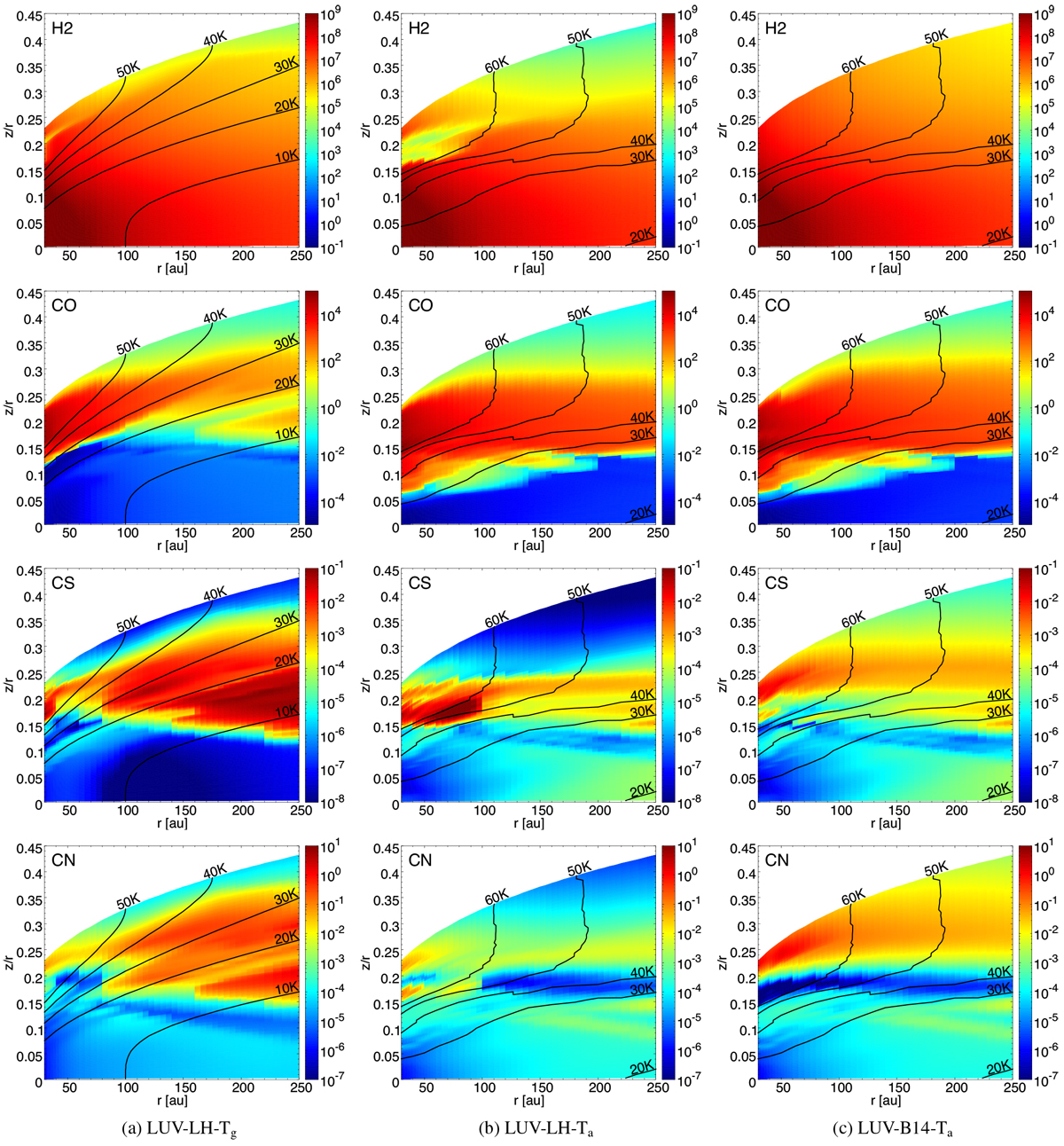

Density [cm−3] of H2, CO, CS, and CN in the gas phase of the single-grain models in LUV regime. The left column shows the results of LUV-LH-Tg, the middle column indicates the results of LUV-LH-Ta, and right column indicates the results of LUV-B14-Ta. The black contours represent the dust temperature (Tdust = Tg in the left column and Tdust = Ta in the middle and right columns).
