Fig. C.3


Download original image

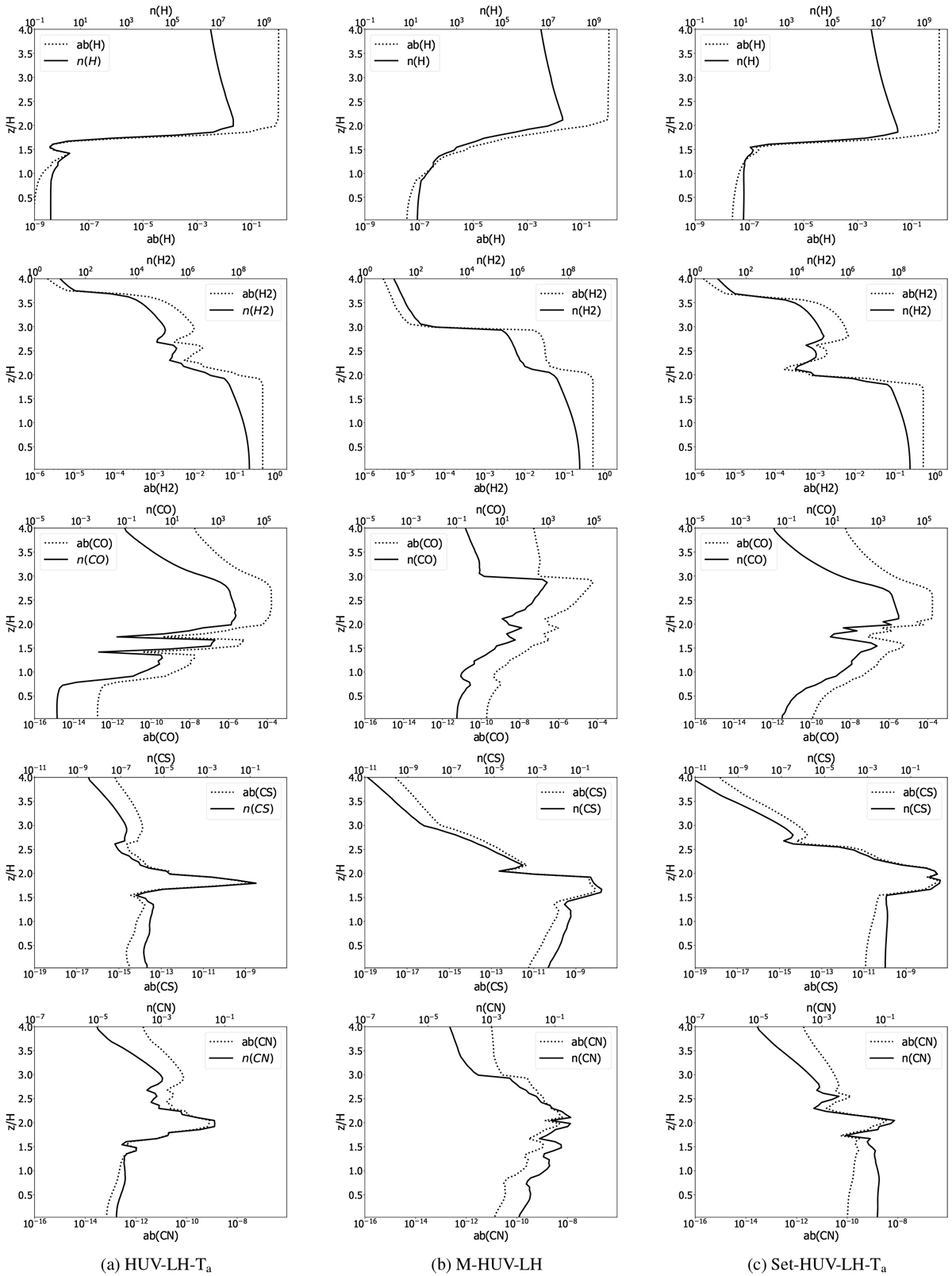

Vertical profiles of H, H2, CO, CS, and CN at 100 au from the star of the single-grain model HUV-LH-Ta (left), the multi-grain model M-HUV-LH (middle), and the intermediate model Set-HUV-LH-Ta (right). The dotted line represents the abundance relative to H and the solid line indicates the density [cm−3 ].
