Fig. C.2


Download original image

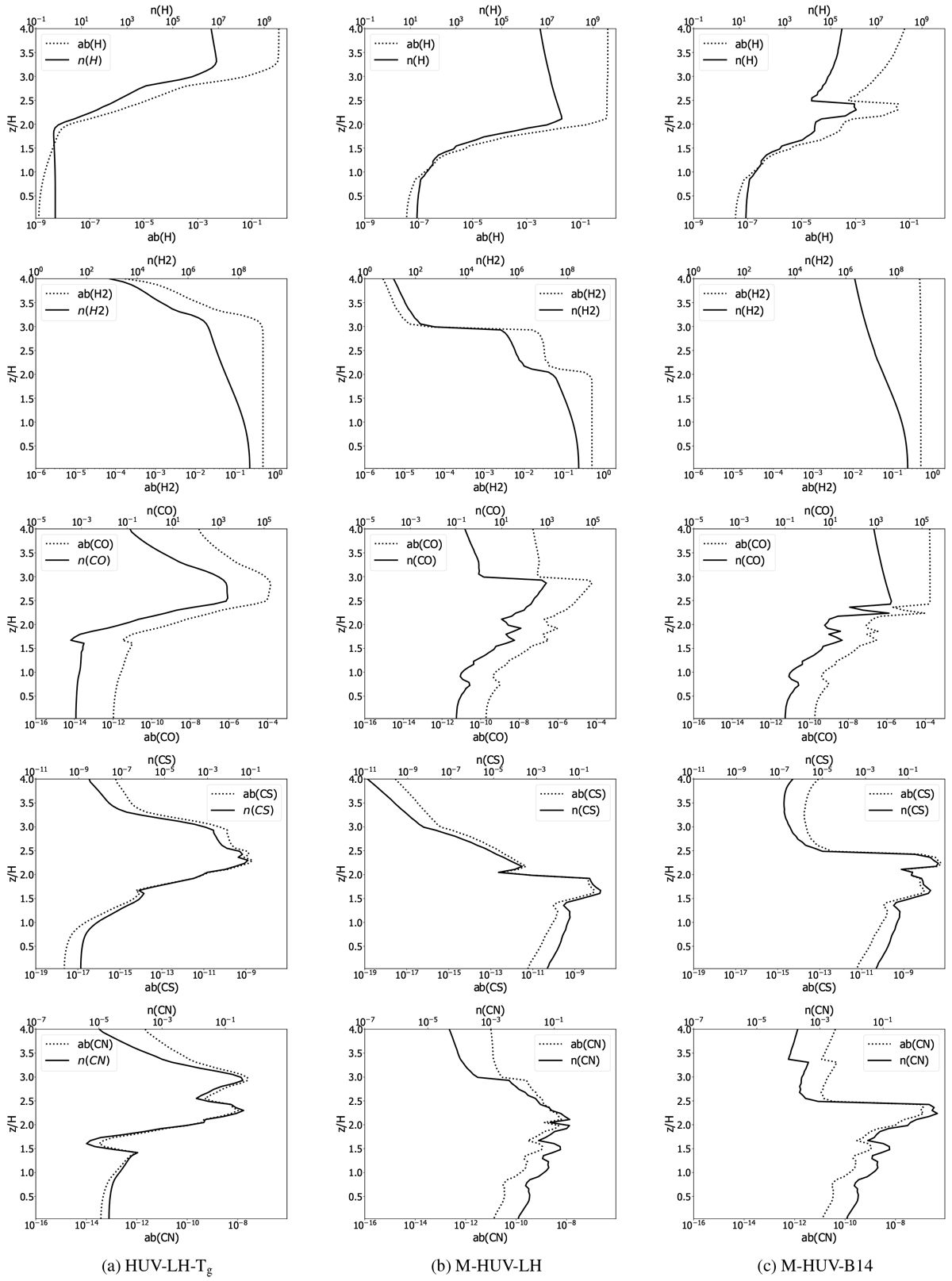

Vertical profiles of H, H2, CO, CS, and CN at 100 au from the star of the HUV single-grain model HUV-LH-Tg on the left column, and multi-grain models on middle and right columns. The dotted line indicates the abundance relative to H and the solid line indicates the density [cm−3 ].
