Fig. 13


Download original image

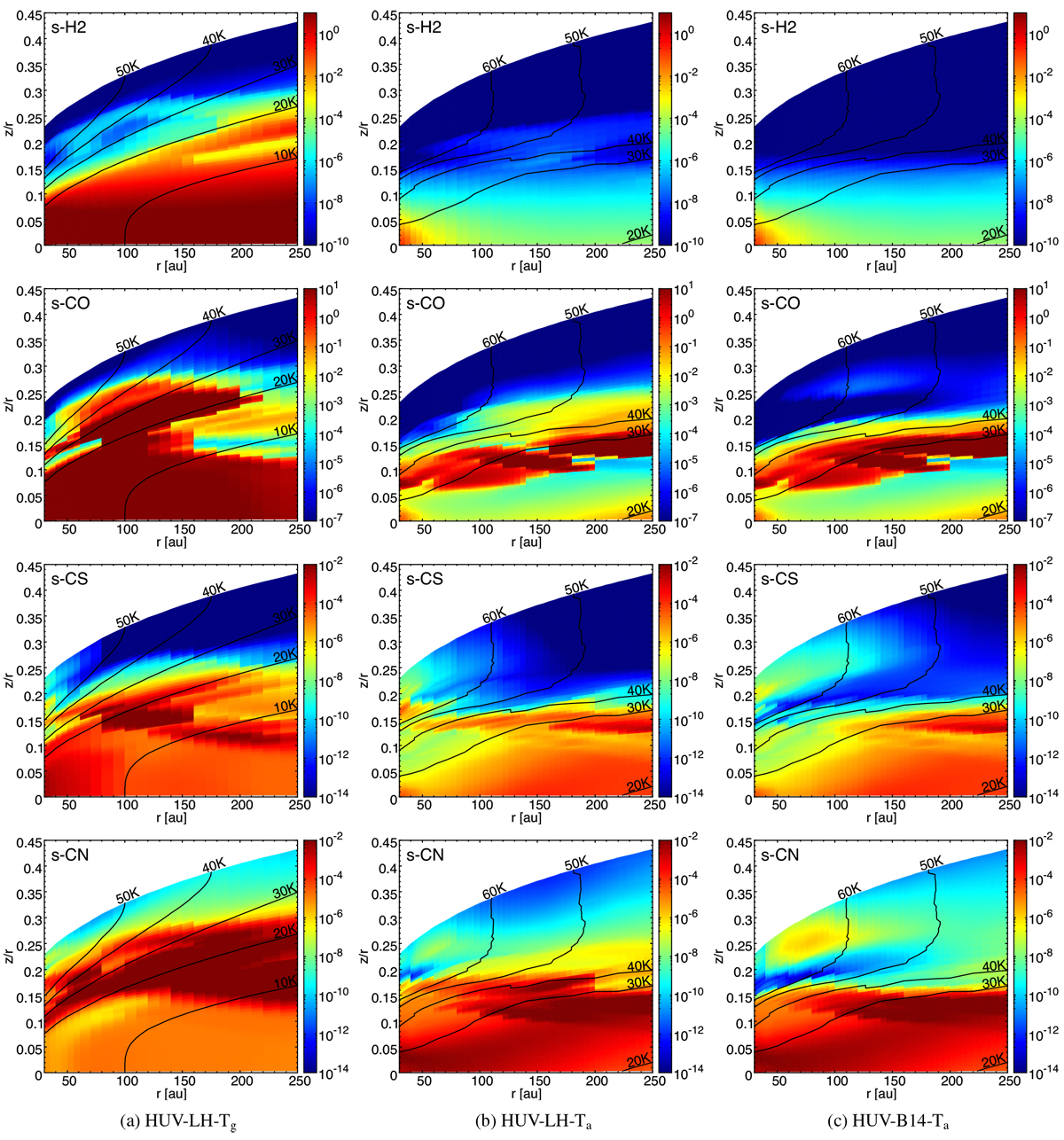

Density (cm−3) of H2, CO, CS, and CN in the gas phase of the single-grain models in the HUV regime. The left column shows the HUV-LH-Tg model, middle column shows HUV-LH-Ta and right shows HUV-B14-Ta. The black contours represent the dust temperature (Td = Tg in the left column and Td = Ta in the middle and right columns).
