Fig. 8.

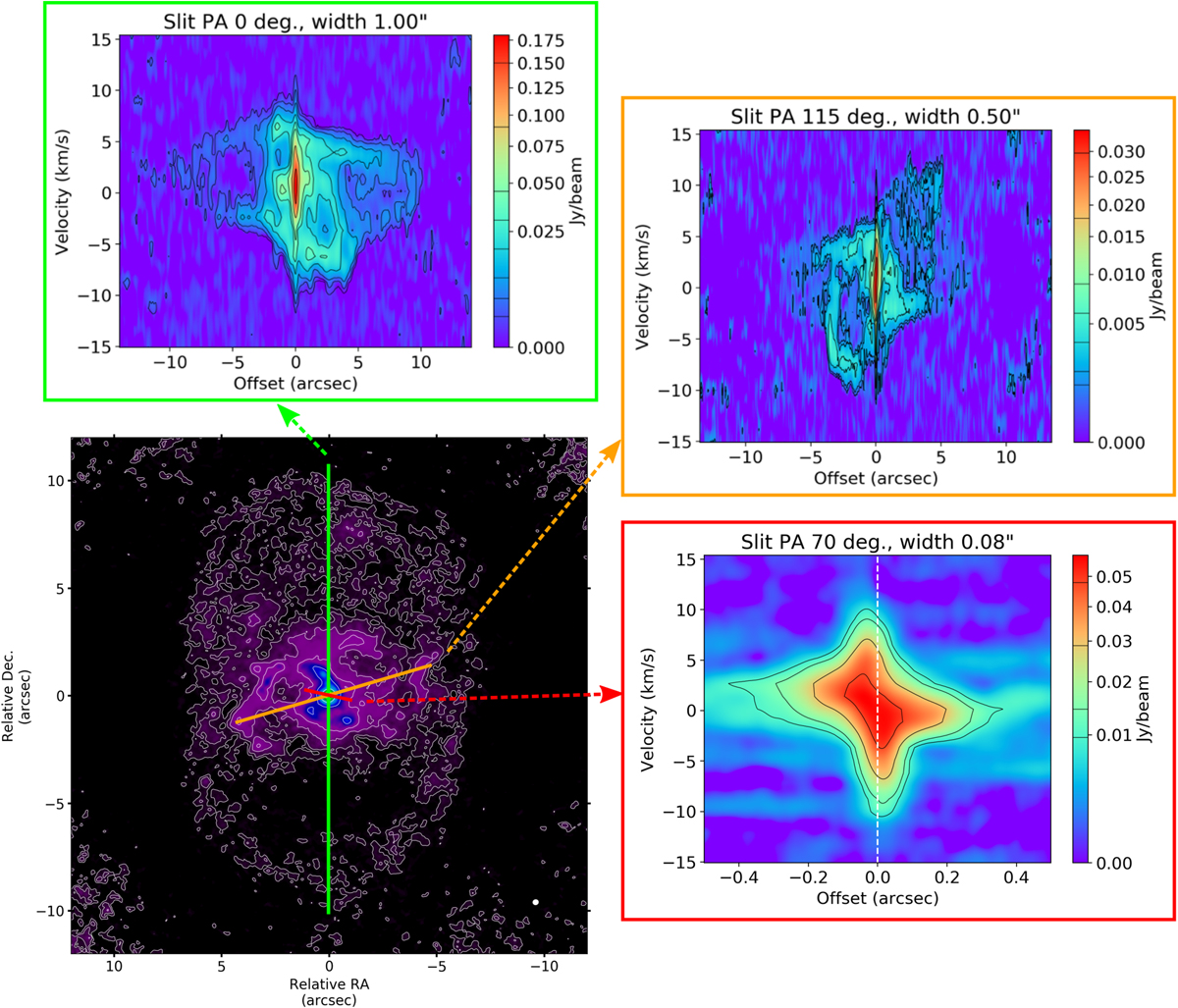

Bottom-left: central channel of the LR CO cube, with colour-coded symmetry axes obtained from the analysis in Sect. 4.1. The colour-coded encased panels represent the PV diagrams constructed along their respective colour-coded axes. The orientation and width of the slits are specified in each PV panel. Velocities are corrected to the systemic velocity of −10.1 km s−1.
