Fig. 6

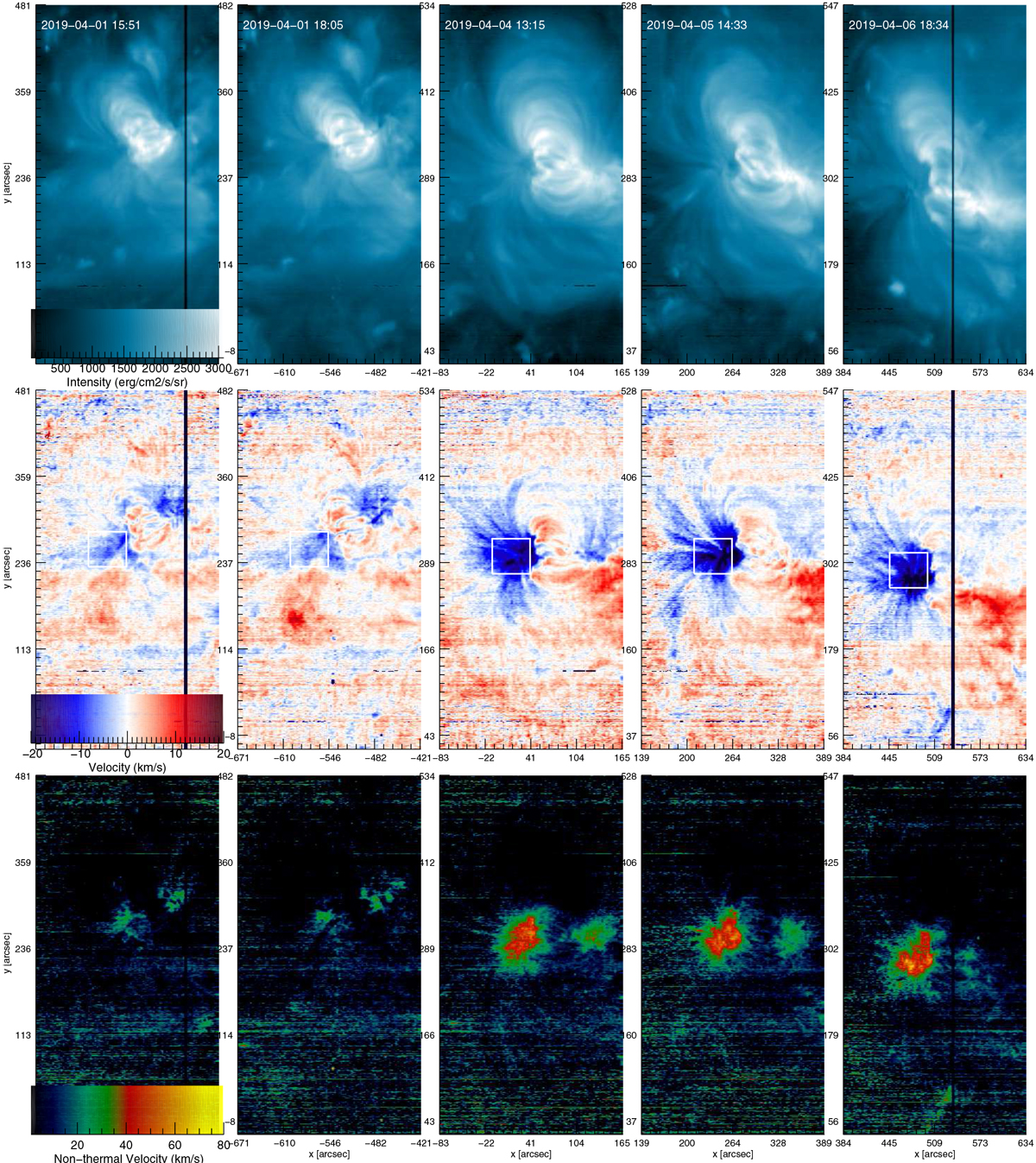

Top panel: EIS Fe XII 195.119 Å intensity maps of the active region as it crossed the disc from 1 to 6 April. Centre panel: Doppler velocity maps derived from the same line. The colour bar shows the velocity range. The white boxes indicate the outflow regions chosen for measuring the FIP bias. Bottom panel: non-thermal velocity maps also from Fe XII 195.119 Å.
