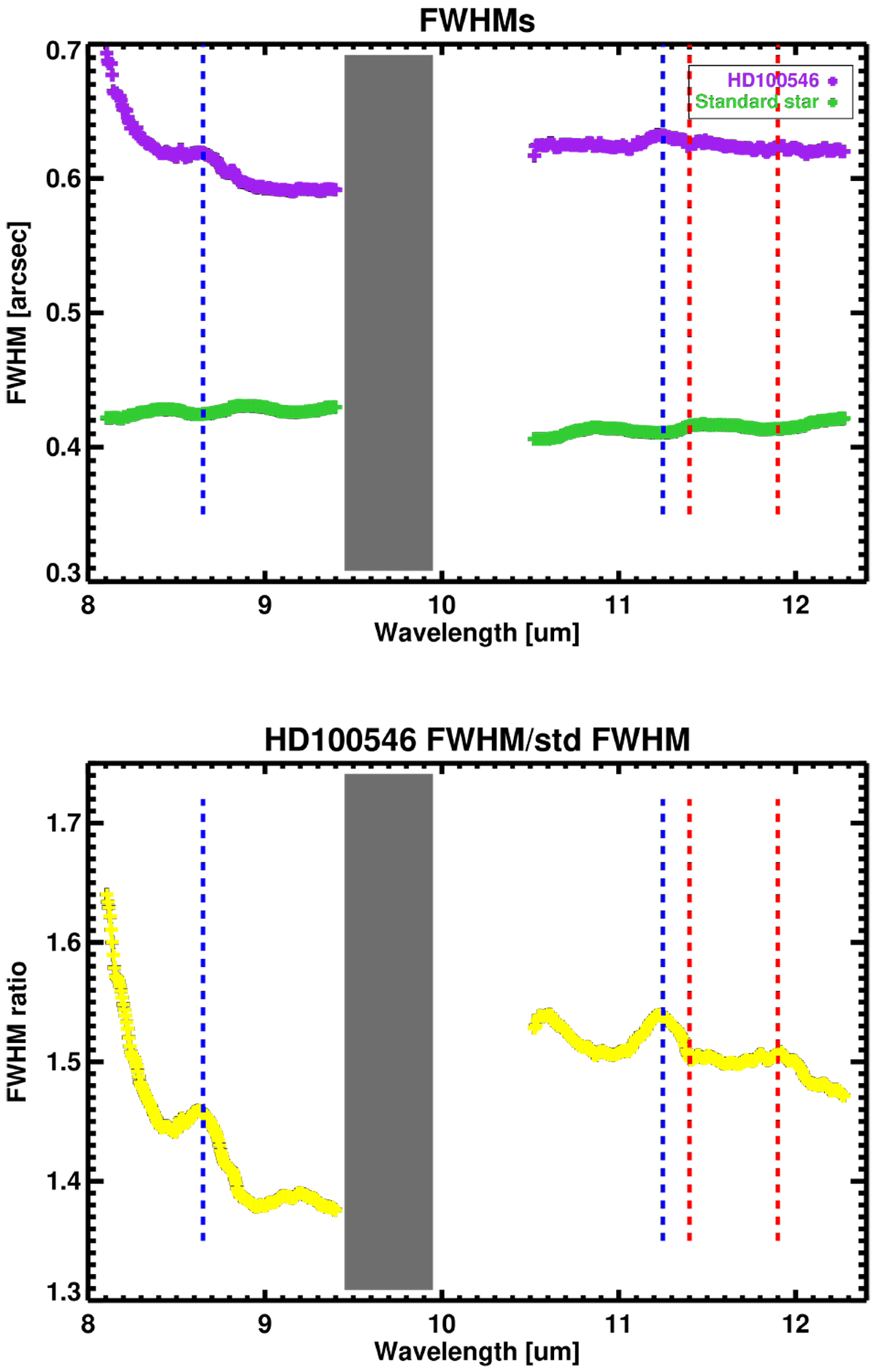

Upper panel: measured FWHM in VISIR long-slit spectra. The ozone atmospheric absorption band is delimited by the grey shaded area. The positions of aromatic (blue) and silicate crystalline (red) main features are shown as dashed lines. The estimated 3 σ error on the FWHM is 2.5 10^−3″. The purple points are the measures for HD 100546. The same reference star (HD 91056, green points) as was used for photometriccalibration was used and is assumed to reflect the angular resolution response of the atmosphere combined to the telescope or instrument. Bottom panel: ratio between HD 100546 and standard star FWHM shown in the upper panel. The raw ratio obtained by crude division of the FWHMs was smoothed it with a three-pixel-wide boxcar having the spectral width of the actual spectral sampling in order to reduce pixel-to-pixel irregularities. The estimated 3σ error on the ratio is about 1.2% (~0.02).
