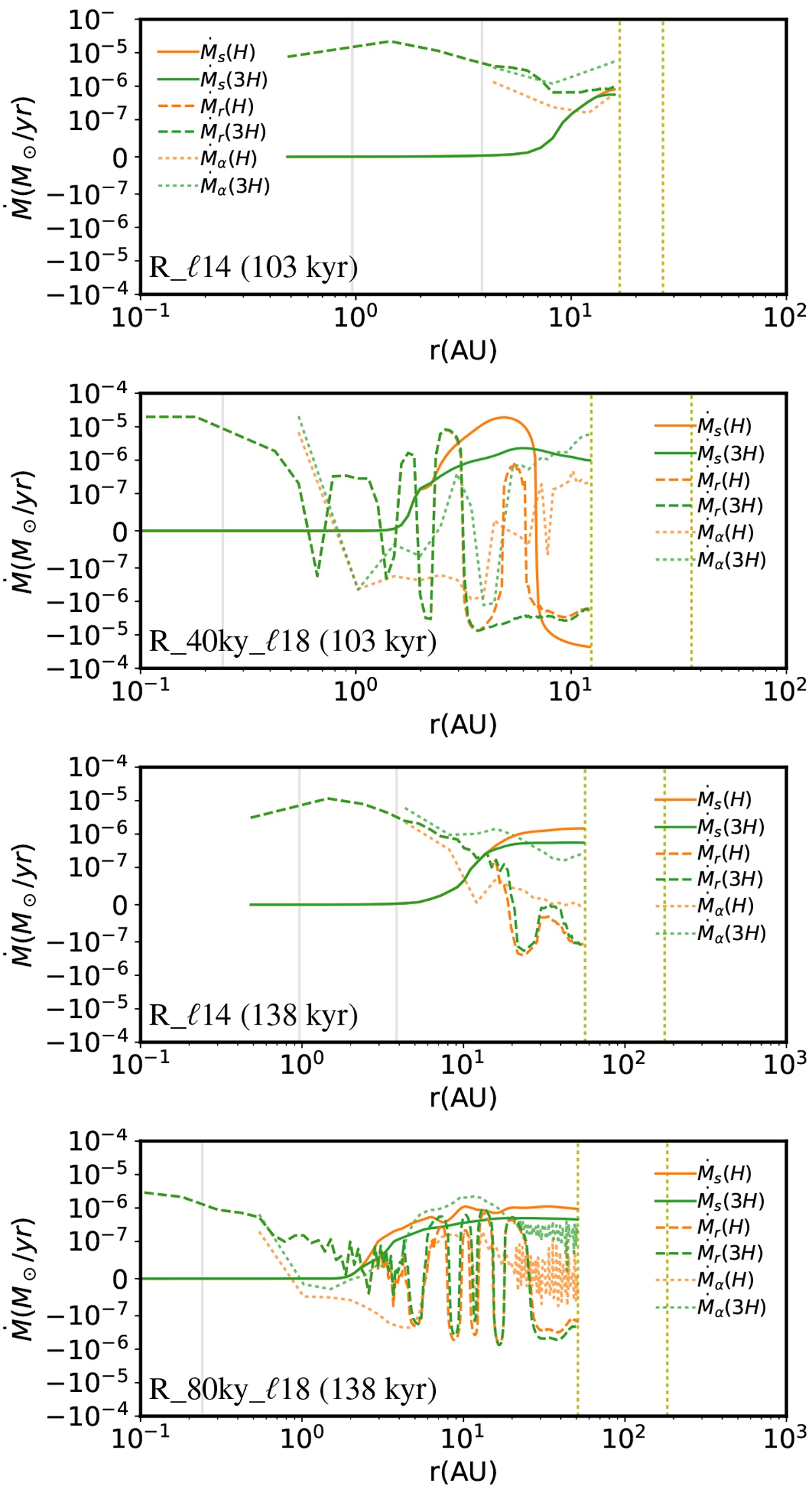

Fig. 25


Massaccretion rate measured across the disk surface (s(< r)), measured radially inside the disk (r(r)), and inferred from the measured α (α (r)) for R_14 and R_40ky_18 at 103 ky, R_14 and R_80ky_18 at 138 ky (from top to bottom). Both positive and negative values with | | > 10−7 are plotted in logarithmic scale, and this is connected with a linear range in between. Most of the surface flux arrives where the slope of s(< r) is the steepest. Below this radius, the disk readily accretes in the radial direction only at a very small radius (<1 AU), and the outer part can have complex motions. The radial mass flux derived from α is not exactly the same as r(r), although the amplitudes are comparable.
