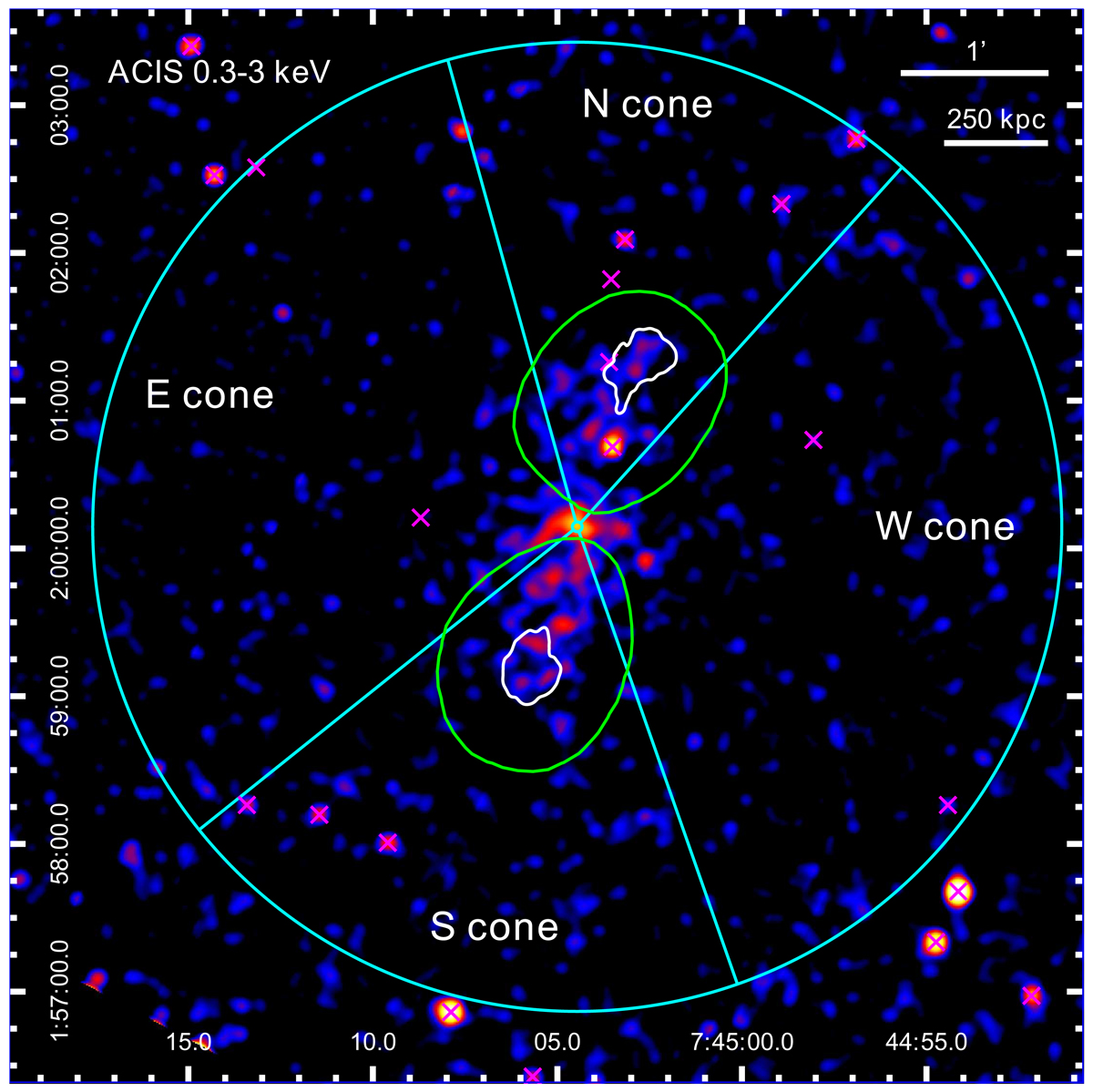

Fig. 5.
Soft band 0.3 − 3 keV ACIS-S flux image smoothed with a Gaussian kernel with a 5 × 5 pixel (
) σ, with the cone regions defined in Fig. 4 superimposed in cyan. The white and green lines represent the contour level at 30 times the rms level for the VLA 1.4 GHz (see Fig. 2) and GMRT 150 MHz (see Fig. 3) maps, while the magenta xs represent the detected X-ray sources.
