Fig. A.3.

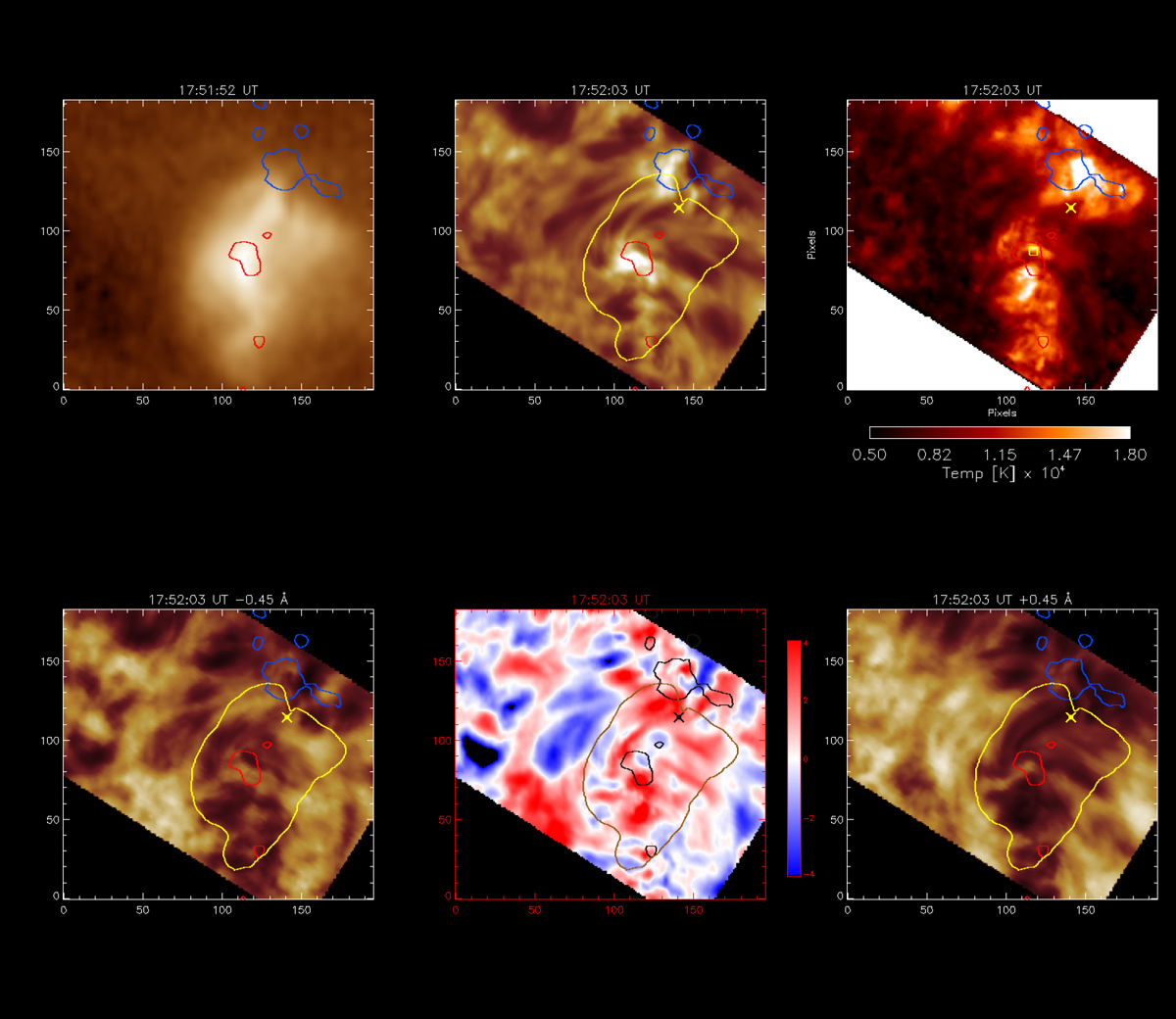

Animation of the following image sequences. From left to right in the top row: AIA 193 image, Hα line-core image, and hydrogen temperature image. Bottom row: Hα image at −0.45 Å, Doppler-shift image, and Hα image at +0.45 Å. The contour is the CBP AIA 193 intensity contour. The ±50 G magnetic-field contours (red – positive polarity; blue – negative). See online movie.
