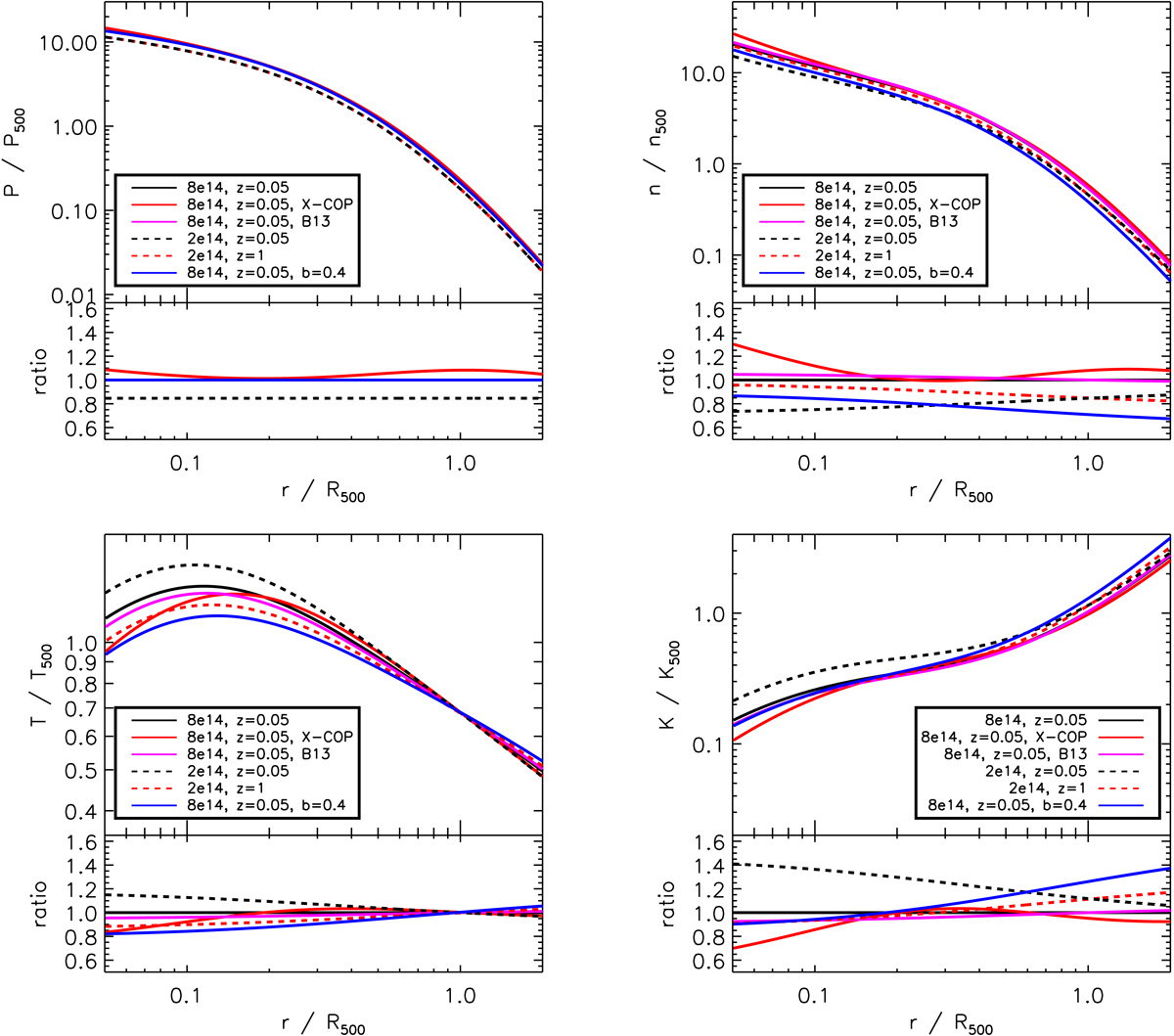

Fig. 1.

Reconstructed thermodynamic radial profiles for objects with (M500, z) = (8 × 1014 M⊙, 0.05), black solid line; the same, but using a pressure profile from X-COP, red solid line, the B13 c − M − z relation, purple solid line; or assuming a hydrostatic bias b = 0.4, blue solid line; (M500, z) = (2 × 1014 M⊙, 0.05), black dashed line; (2 × 1014 M⊙, 1), red dashed line. The ratio is shown with respect to the reference case, black solid line, M500 = 8 × 1014 M⊙ and z = 0.05. P500, n500, T500, K500 refer to the normalisation values presented in Table 1.
