Fig. A.6

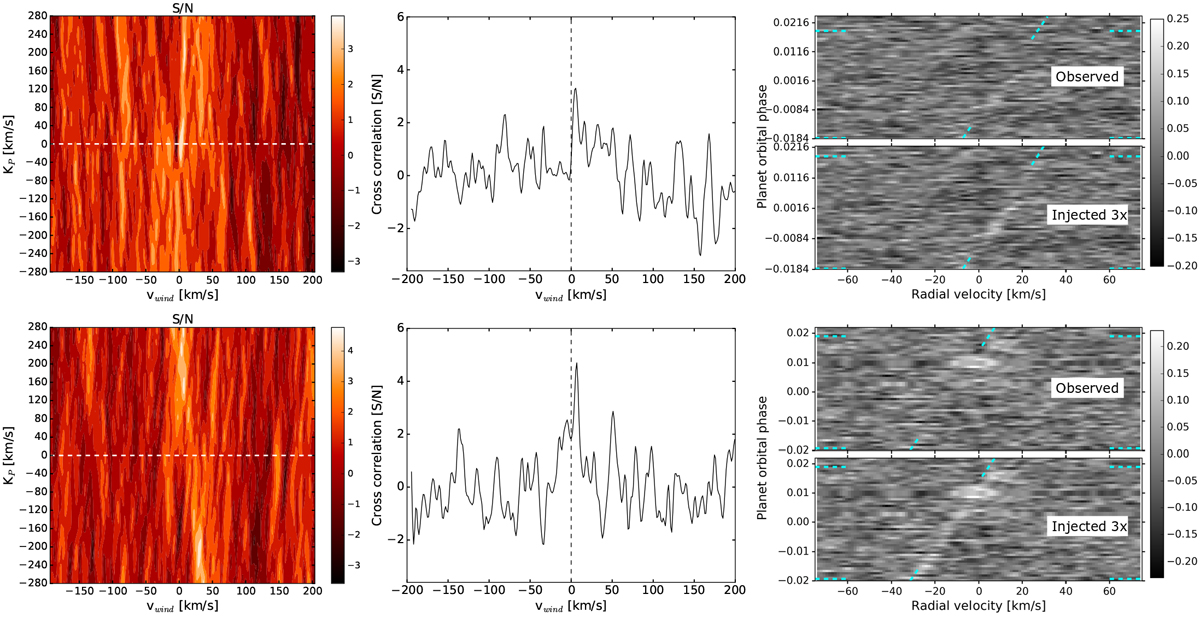

Leftcolumn: S/N maps for HD 209458 b on the nights NA, 2 (top) and NA, 3 (bottom) for potential water signals with respect to the exoplanet rest-frame (horizontal axis) and Kp (vertical axis). The horizontal dashed lines mark the Kp = 0 km s−1 value. Middle column: slice through the left panels at the expected Kp for HD 209458 b (146 km s−1). Right column: cross-correlation matrices in the Earth rest-frame. The transits occur between the horizontal dashed lines. The tilted dashed lines trace the expected planet velocities during the observations.
