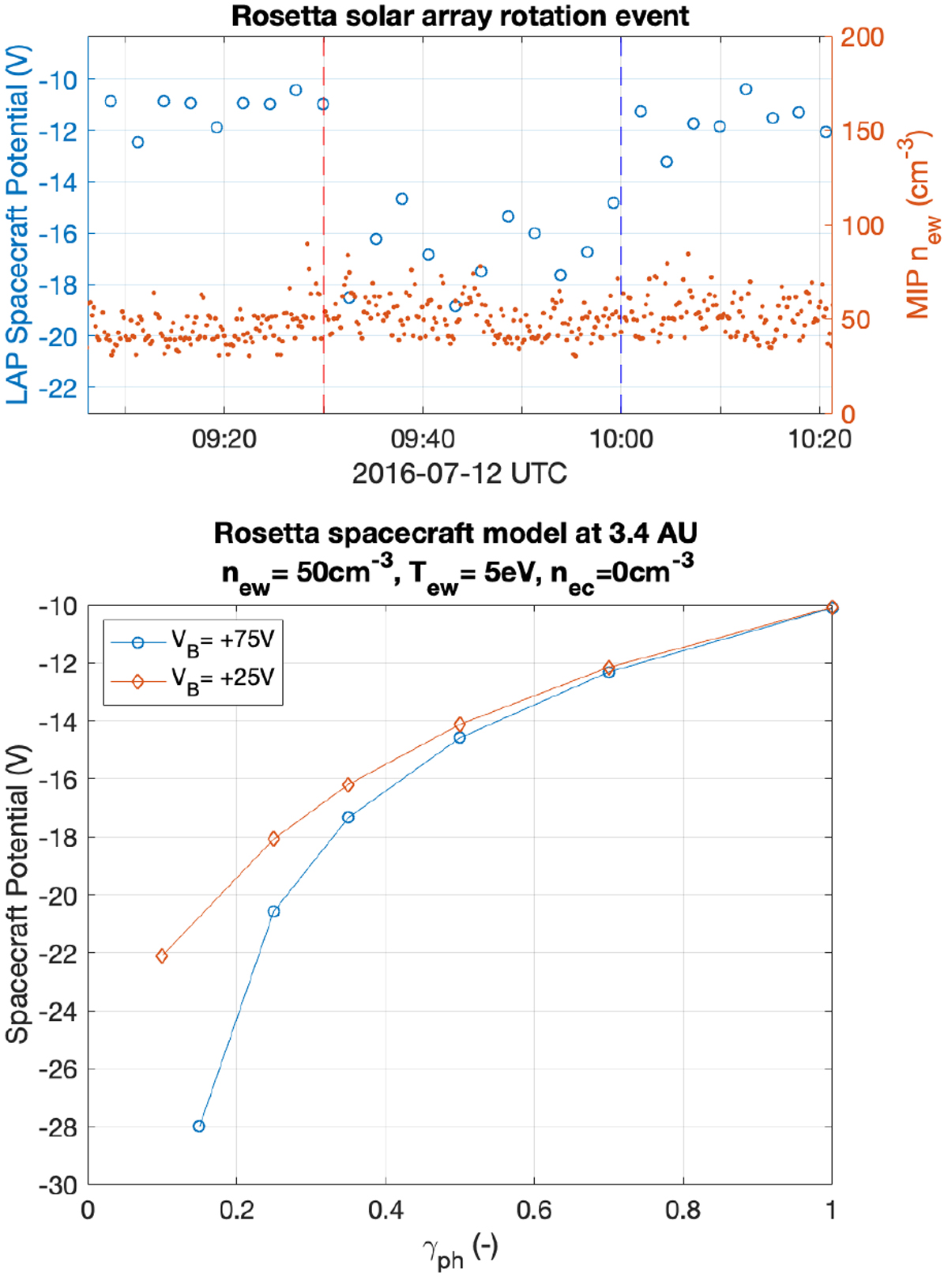

Fig. 17

Top: LAP spacecraft potential (blue circles) and MIP electron density (red dots) during a rotation of the Rosetta solar array of 60 deg from the sun, for which two dashed lines indicate the start (red) and end (blue) of the test. Bottom: spacecraft potential result at various γph and VB from an adaptation of our solar panel model to a Rosetta spacecraft box with ten panels, for which new = 50−3, Tew = 5 eV, at 3.4 AU with no cold electrons present.
