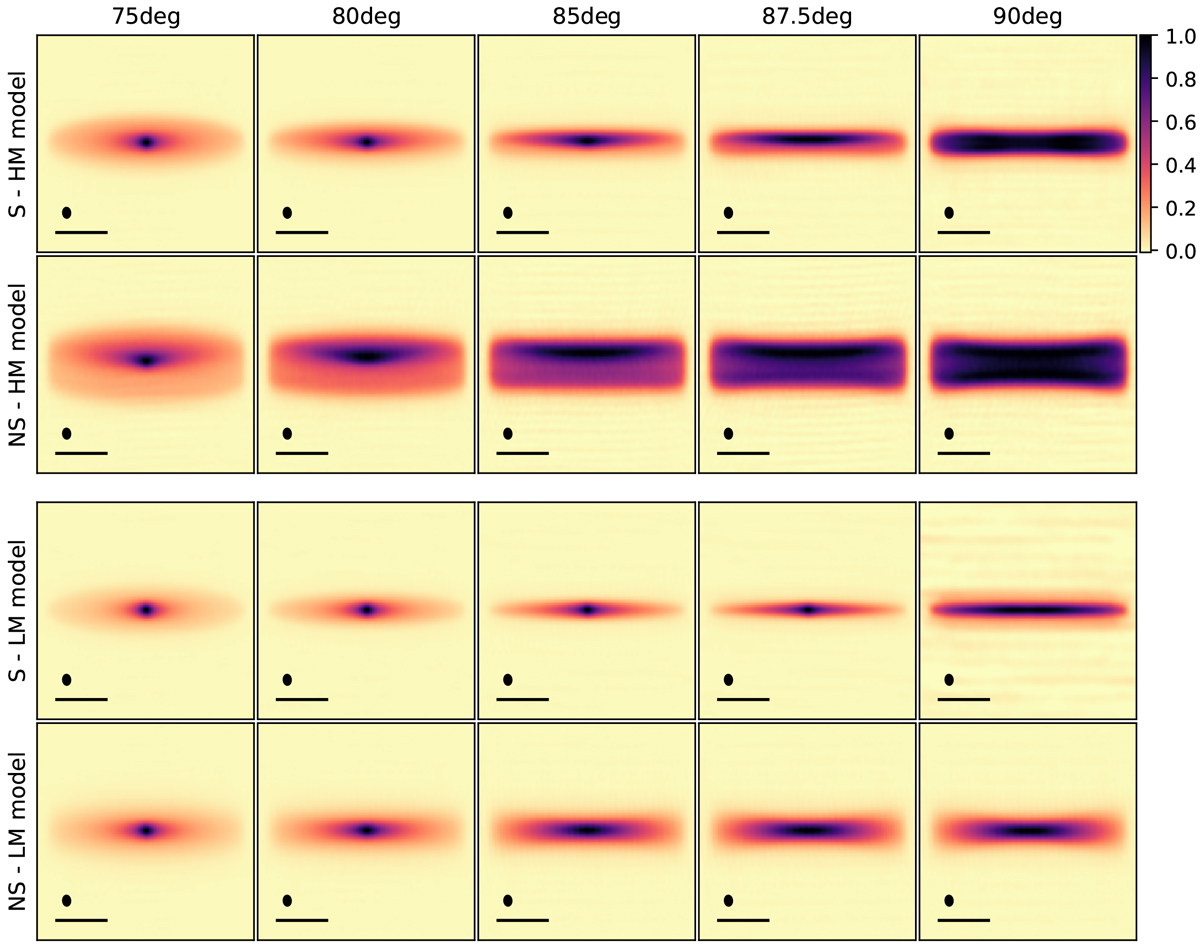

Fig. 6
Radiative transfer models computed at 0.89 mm (band 7), for different inclinations. Top and third row: high and low mass settling models (h1mm = 0.70 au at r = 100 au), second and bottom row: high and low mass No Settling models (h1mm = hgas = 10 au at r = 100 au). The beam size and a 0.5′′ scale bar are shown in the bottom left corner of each panel.
