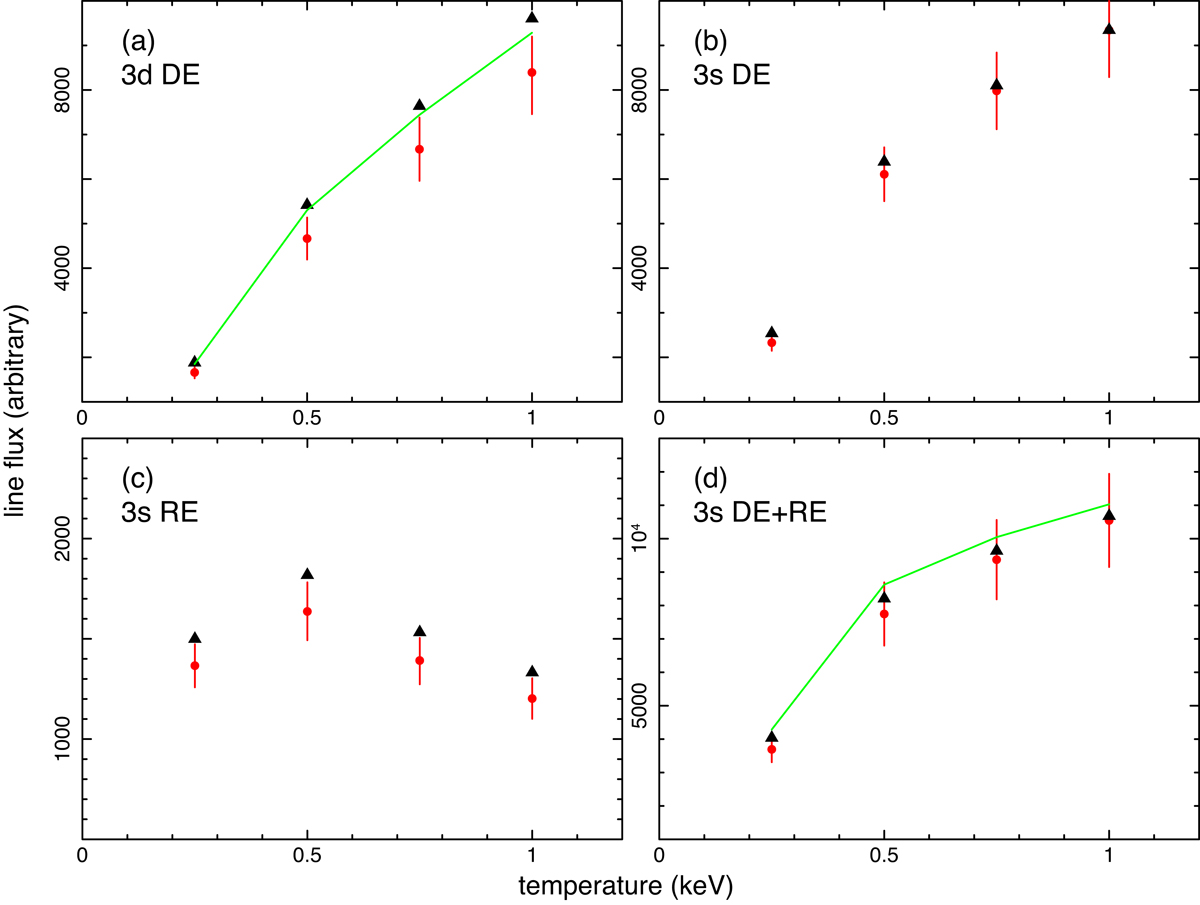

Fig. 7.

Comparison of SPEX calculation and EBIT measurement on the Ne-like Fe excitation. (a) Direct excitation of the 3d manifold, (b) direct excitation of the 3s manifold, (c) resonant excitation onto the 3s levels, and (d) combined direct and resonant excitation of the 3s, from the original SPEX-FAC (black triangle), SPEX-ADAS (green line), and the EBIT experiment (red data). The SPEX-ADAS calculation does not separate direct and resonant excitation channels.
