Fig. D.2.

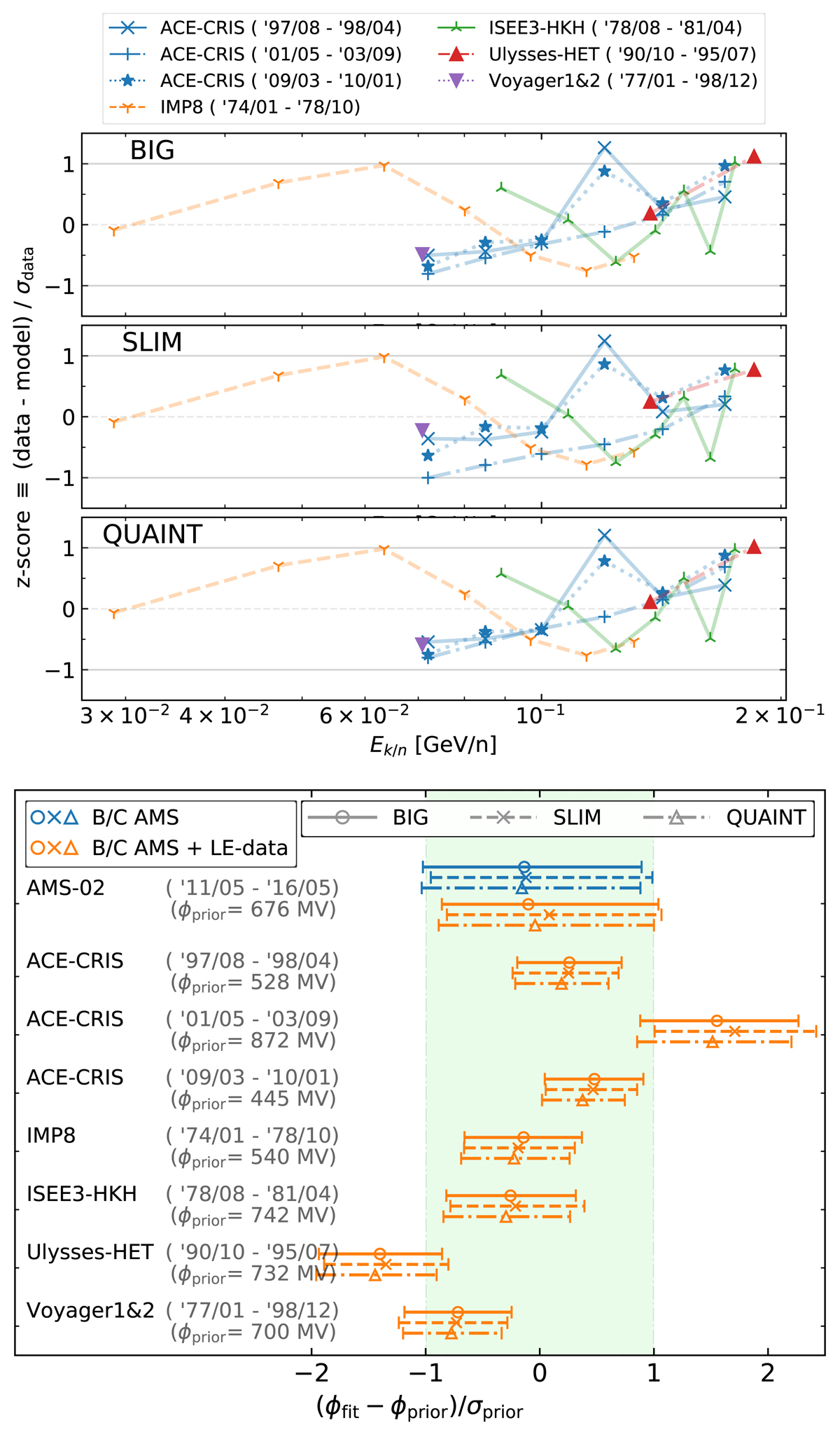

Top panel: z-score = (model-data)/σdata of B/C LE-data used in the AMS and LE-data combined analysis for BIG (top), SLIM (middle), and QUAINT (bottom). To guide the eye, data points from the same experiments are linked. Bottom panel: post-fit residuals and 1σ uncertainty of the solar modulation nuisance parameters for BIG (solid lines), SLIM (dashed lines), and QUAINT (dash-dotted lines). The blue lines show the residuals for the fit to AMS-02 data only, and orange lines for AMS-02 and LE-data, one nuisance per dataset (per data-taking period). For comparison, the greenish vertical band shows the 1σ nuisance prior range.
