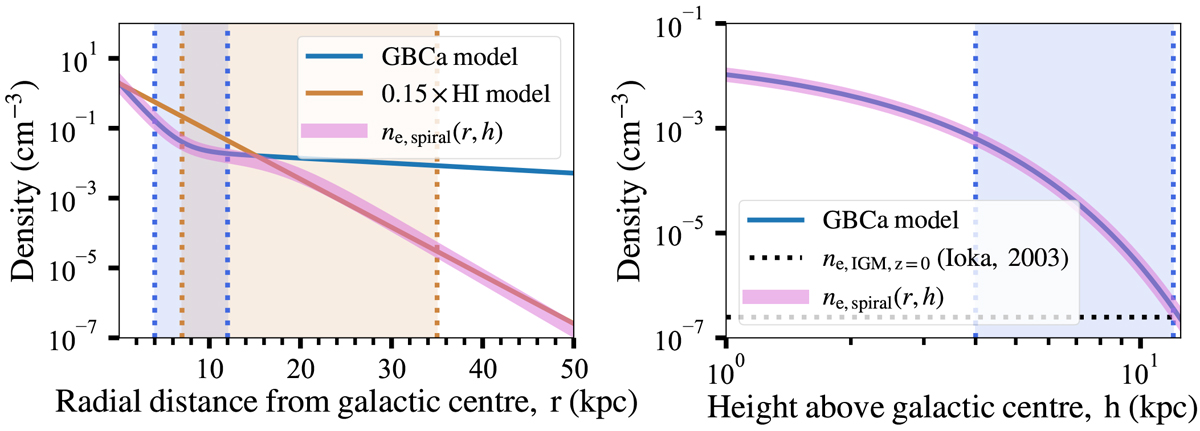

Fig. 2


Radial and height cross sections of our spiral galaxy electron density model ne,spiral (r, h) (pink lines). Constituent components of the model tracing the inner MW Galactic disc (Gómez et al. 2001; Schnitzeler 2012) (blue lines) and an ionised outer HI disc model (Kalberla & Dedes 2008) are shown (brown lines). Shaded (blue/brown) regions highlight areas in which the inner/outer profiles are considered well constrained. The horizontal black dotted line indicates the approximate electron density for the IGM at zs = 0 (Ioka 2003).
