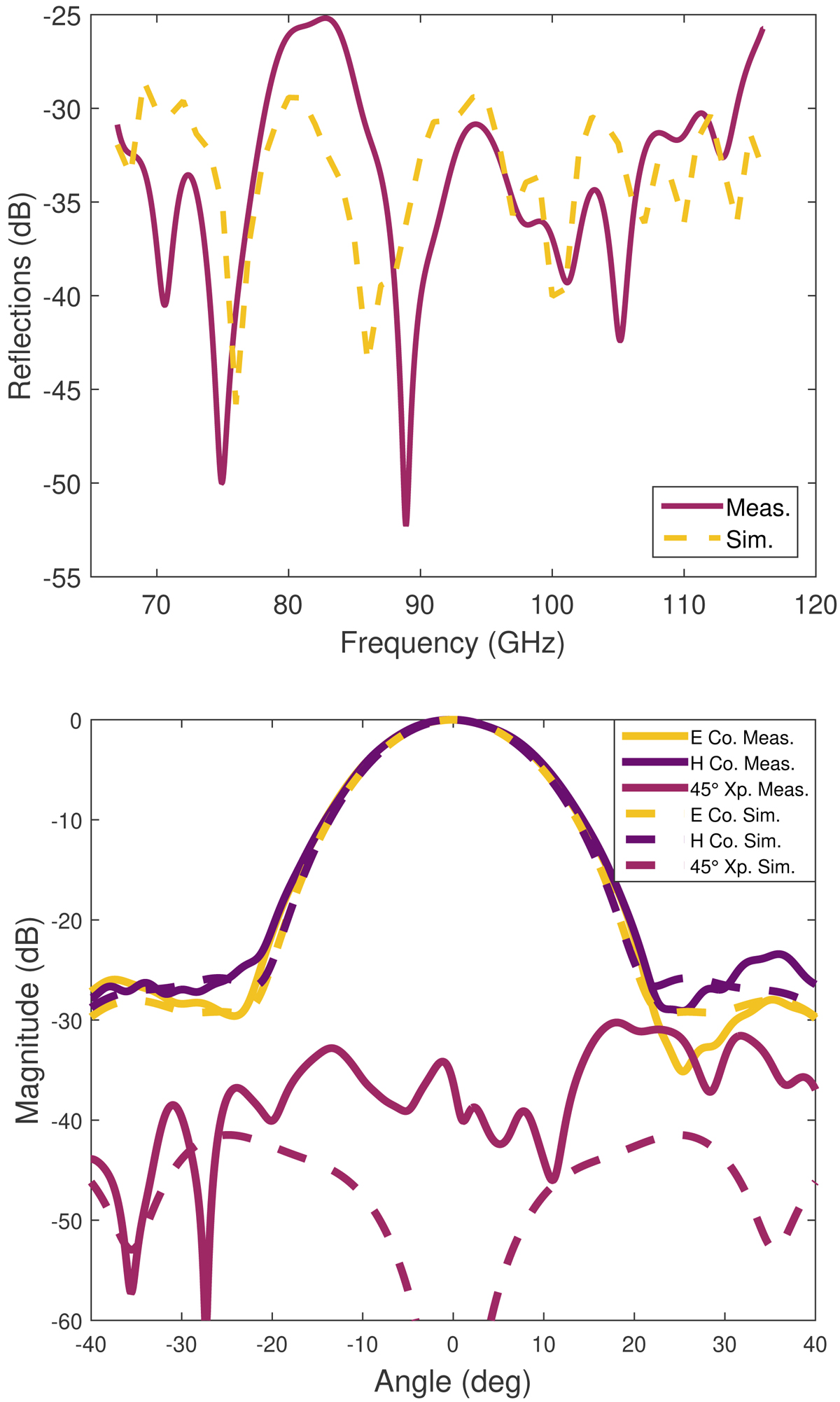

Fig. 10.
Upper panel: measurement and simulation results for the reflected power, S11, from the UdC feedhorn. Lower panel: measured and simulated far-field radiation pattern of the UdC feedhorn at 90 GHz, near the band centre. Our EM simulations confirm that the beam properties scale smoothly as a function of wavelength and, hence, we only show one representative frequency.
