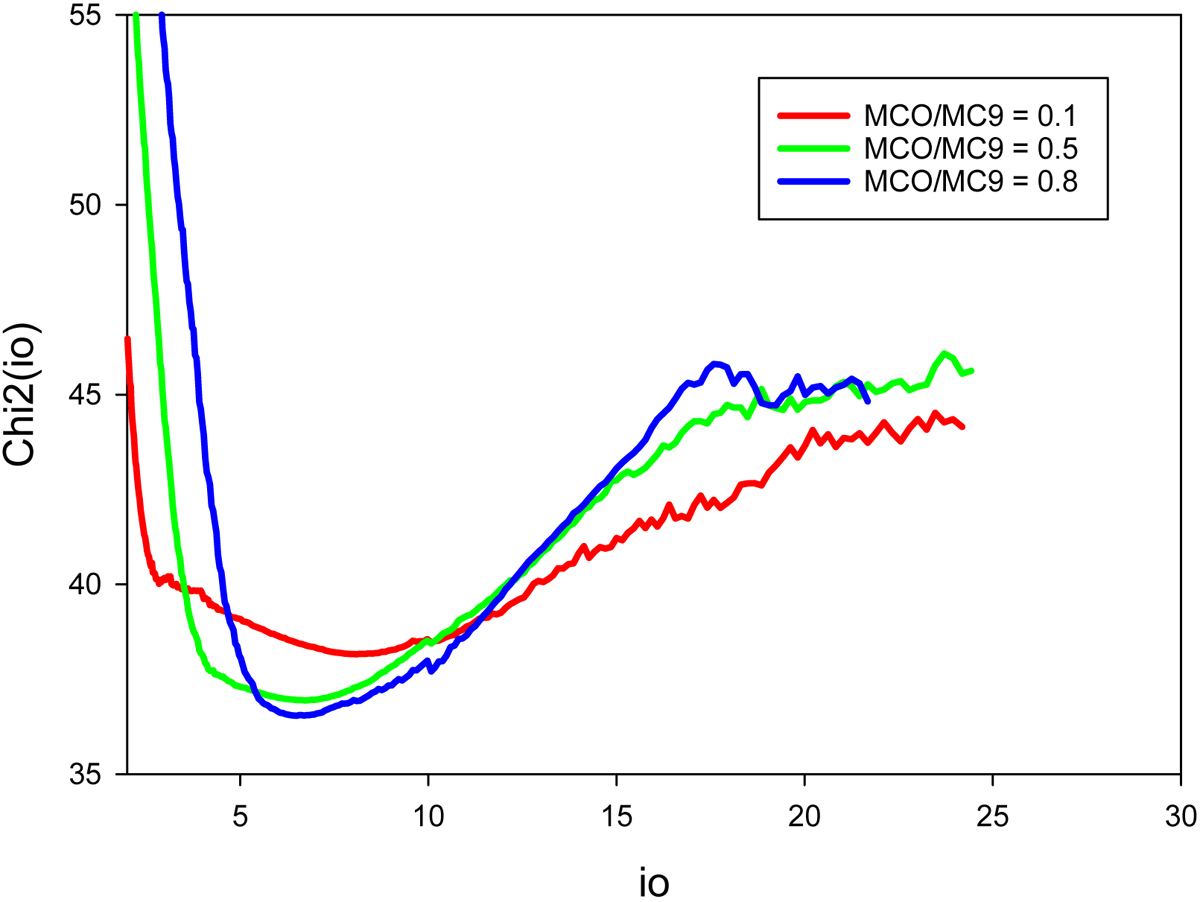

Fig. B.4.


BBH model C0–C9 characterized by RC0 − C9 = 0.3 mas. Component C6 is ejected from core C0: the functions χ2(io). The curves χ2(io) obtained for different values of the mass ratios MC0/MC9 = 0.1, 0.5 and 0.8. All the curves are concave and show a minimum, but the solution corresponding to MC0/MC9 = 0.8 is not stable because the corresponding ratio (Rdisk, C0/DL1 − C0)(io) is higher than 1 (see Fig. B.5). For solutions with MC0/MC9 ≤ 0.5 the solution with MC0/MC9 ≈ 0.5 has the smallest , i.e., the solution that provides the best fit of the VLBI component C6 corresponds to the BBH system C0–C9 characterized by RC0 − C9 ≈ 0.3 mas and MC0/MC9 ≈ 0.5.
