Could bow-shaped magnetic morphologies surround filamentary molecular clouds? - The 3D magnetic field structure of Orion-A

Free Access

Fig. 4

Open with DEXTER Download original image

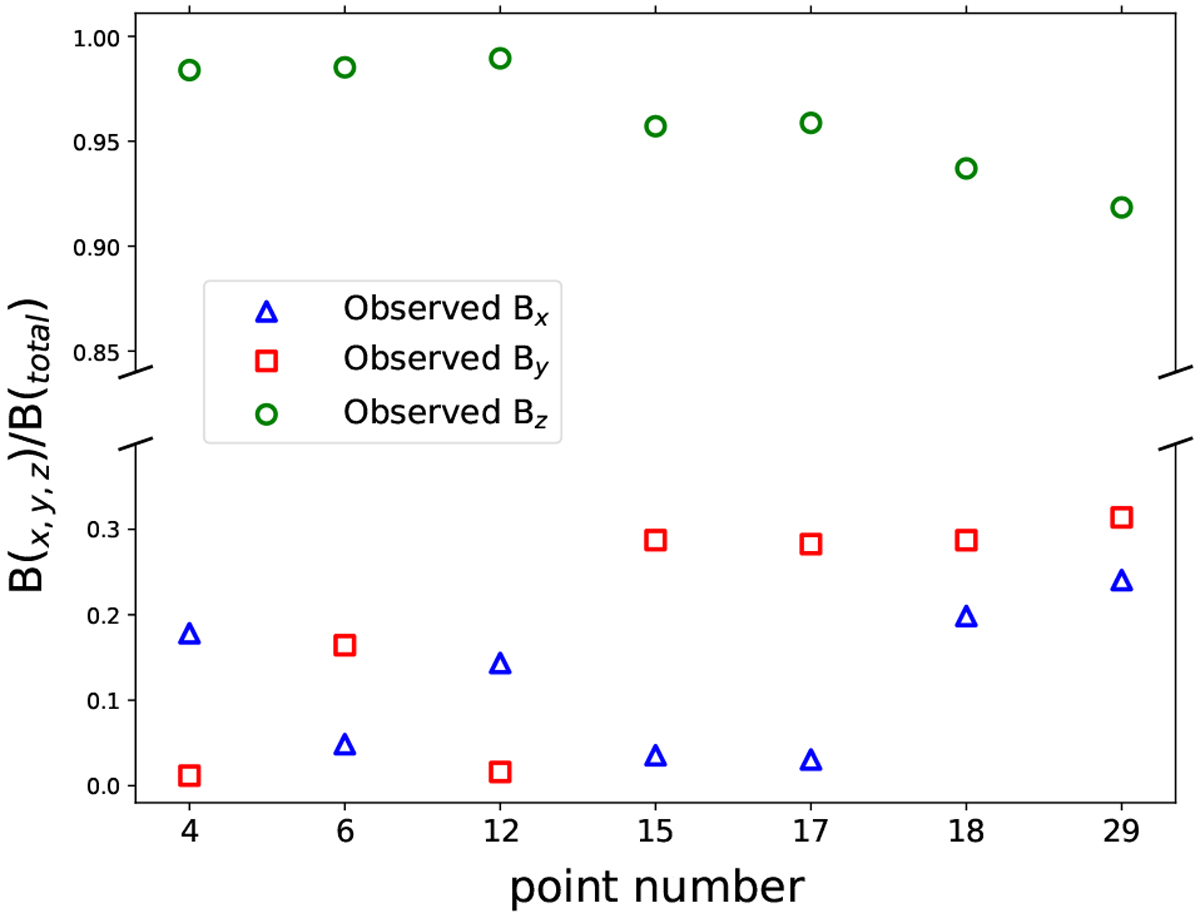

Observed B_x, B_y, and B_z using frame system depicted in Fig. 3, as well as B_⊥ and B_∥ values obtained by PXXXV and TPBK18, respectively. Y-axis shows the ratio of each component of magnetic field to the total value, and x-axis refers to the numbered data points labeled in Fig. 2.
