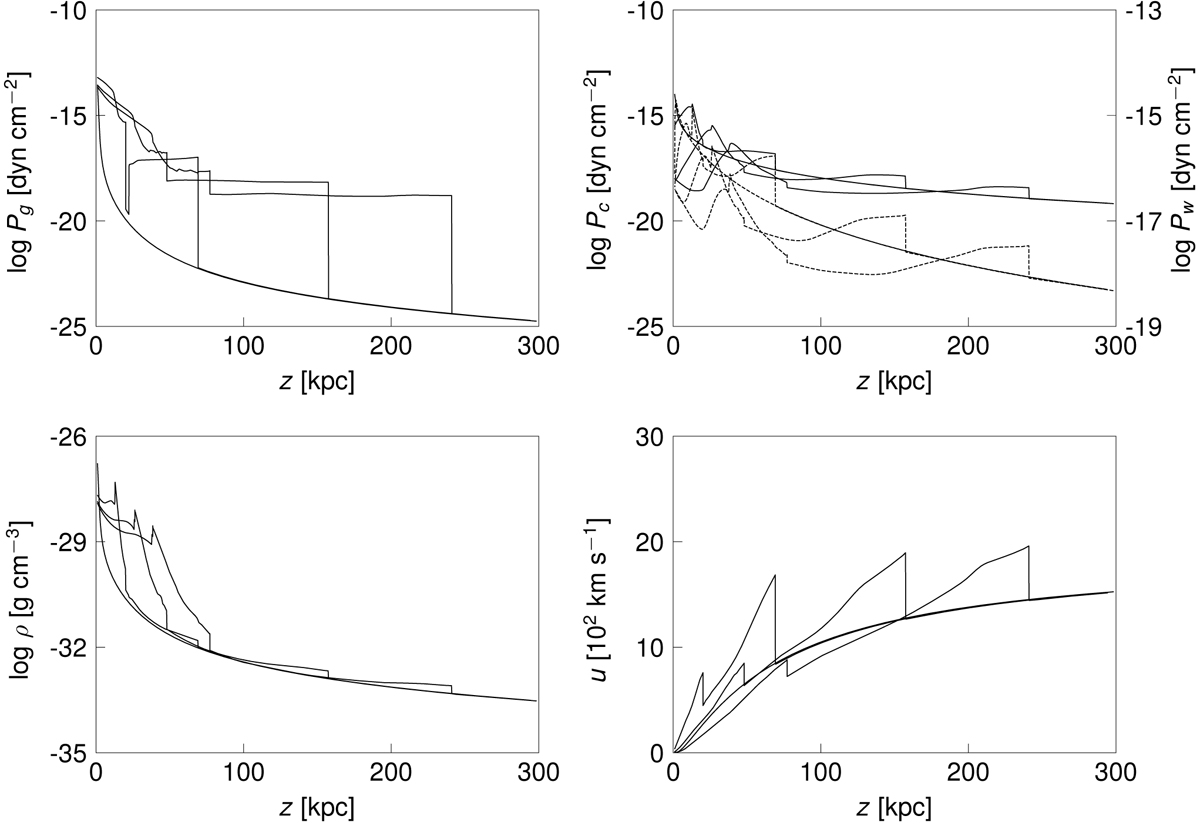

Fig. 10.
Radial structures for Model H on the large scale of 300 kpc at times of 3 × 107 yr, 6 × 107 yr, and 9 × 107 yr. Upper panels: different pressure contributions from thermal gas Pg, CRs Pc, and waves Pw (dashed lines). Flow velocites up to 2000 km s−1 are reached and the overall contribution of the reverse shock remains small.
