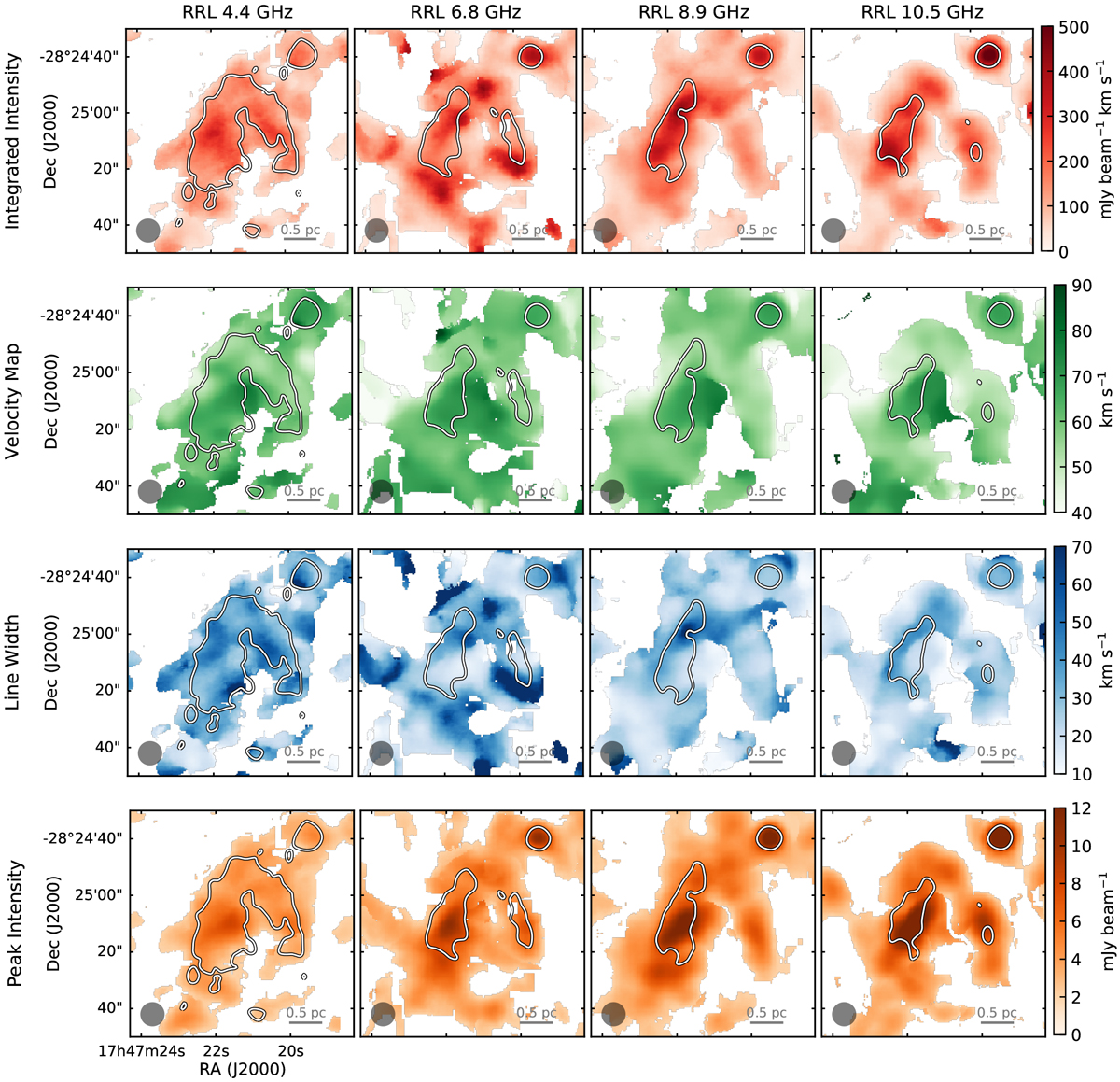

Fig. C.1
Maps of the fit parameters of RRLs in DS. From top to bottom the four rows: the integrated intensity, centroid velocity, line width, and peak intensity. The RRLs are fit with a Gaussian function. The synthesized beam (8 arcsec) is shown at the lower left corner of each panel. Continuum emission at respective frequencies (4.4, 6.8, 8.9 and 10.5 GHz) are overlaid as contours.
