The physical and chemical structure of Sagittarius B2 - V. Non-thermal emission in the envelope of Sgr B2

Free Access

Fig. 10

Open with DEXTER Download original image

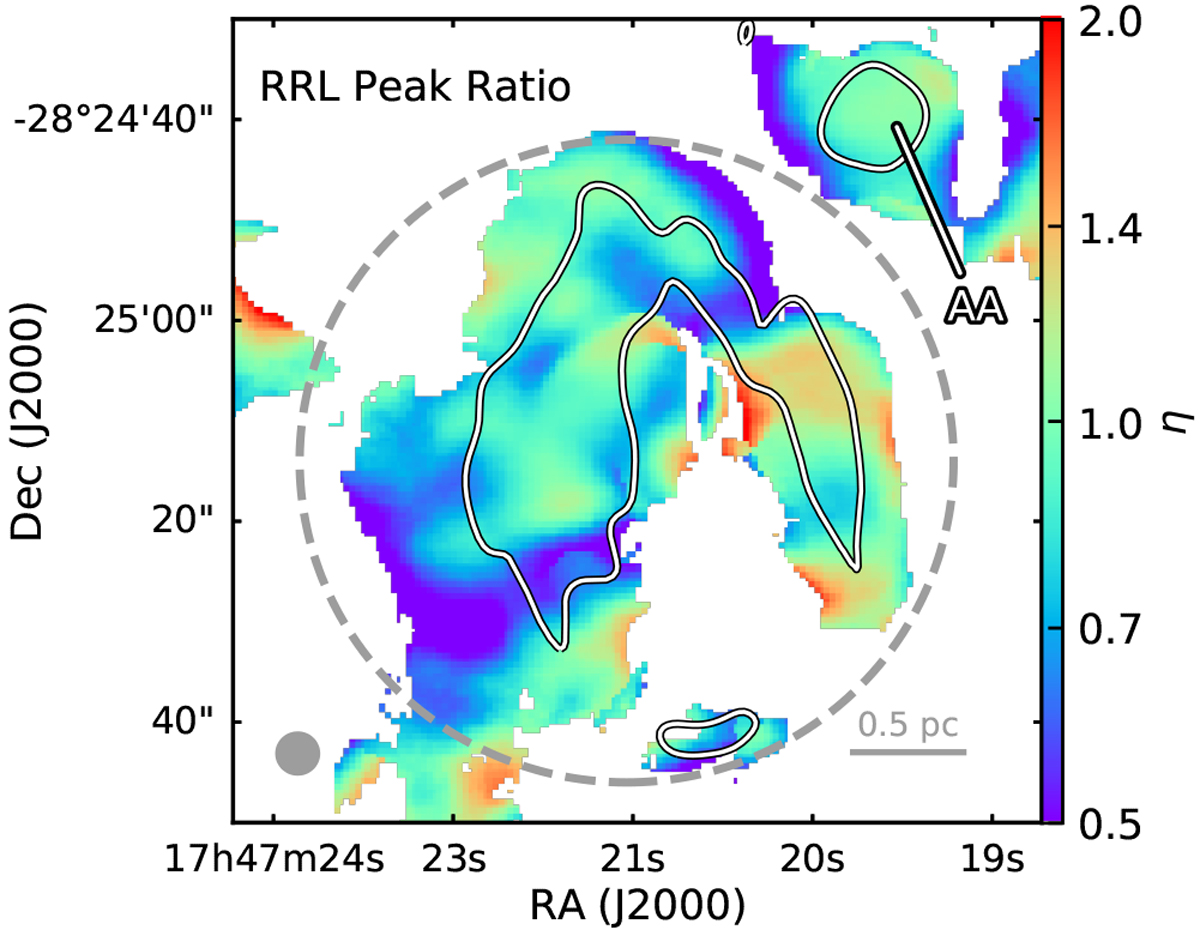

Map of η (see Sect. 4.2) in DS. The X band continuum emission is overlaid as contours. The synthesized beam, corresponding to 8′′, is plotted as a dark circle at the lower left corner. The dashed circle indicates the area in which pixels are taken into account for Fig. 11.
