Fig. 3

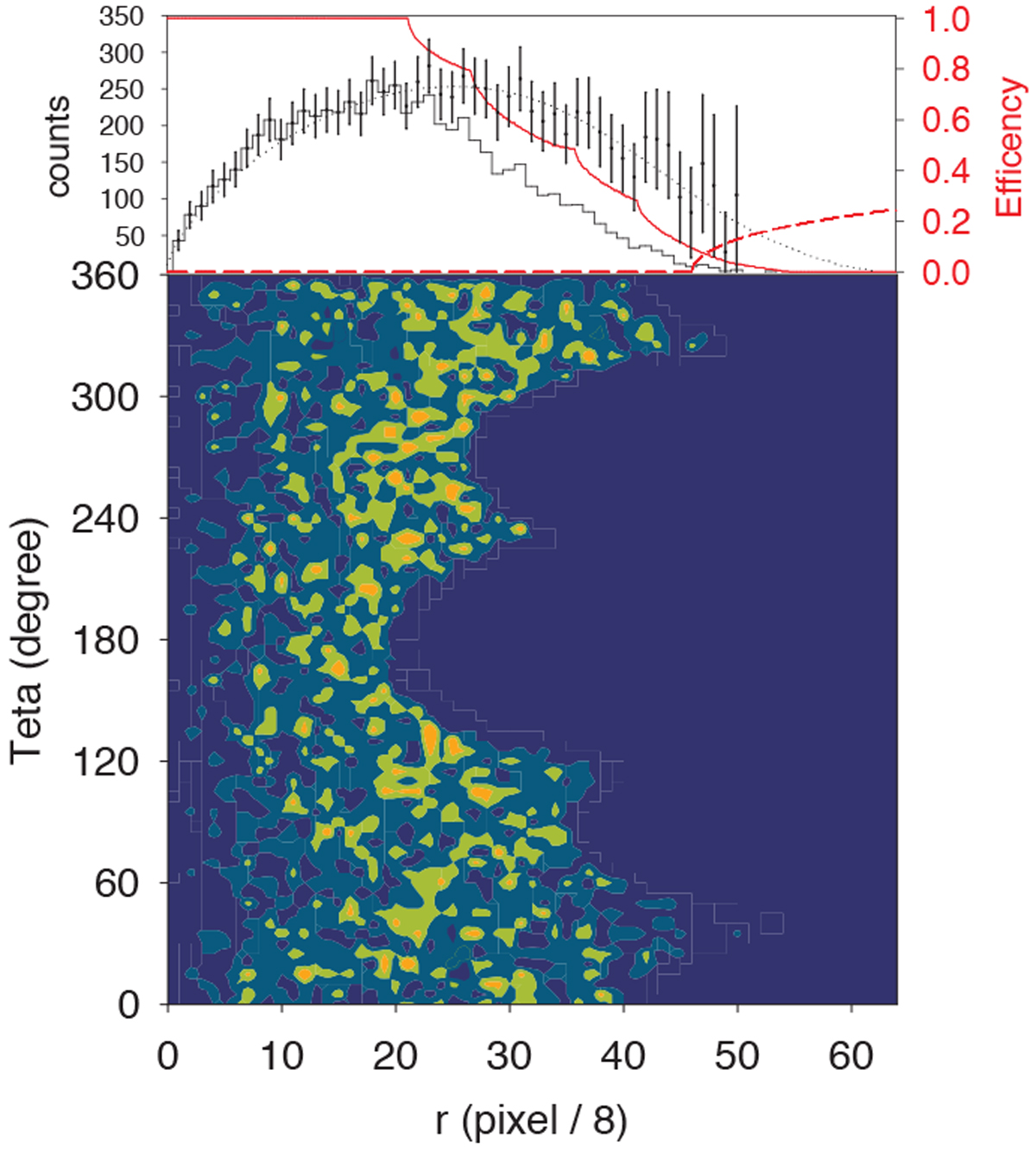

Reconstructed image of the H distribution in the channel C+/H/H with the CCD camera in polar coordinates (r, θ). Upper panel:projection on the r-axis of the image(solid black line). Also shown are the geometrical efficiency of the CCD (solid red line) and the efficiency of the planar detector (dashed red line; see text). The back points with error bars show the H position distribution after efficiency correction. The dotted line is the result of the adjustment (see text).
