Fig. 3.

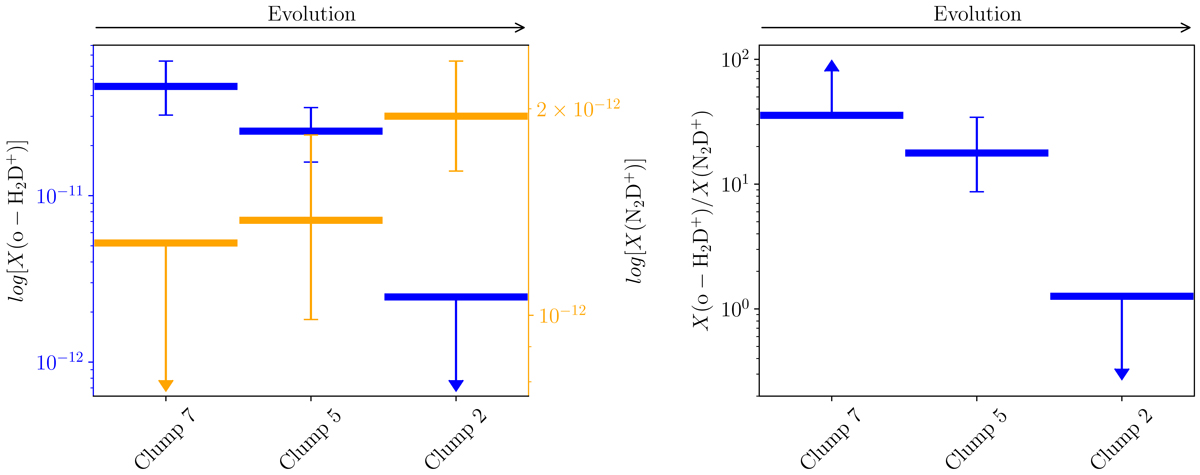

Left panel: calculated o-H2D+ (blue) and N2D+ (orange) abundances. Right panel: relative abundance of the two species. The clumps are ordered by evolutionary stage, from the least- to the most evolved. The 95% credible interval is indicated for abundances and ratios; we point out that for non-detections, only the upper limit is shown.
