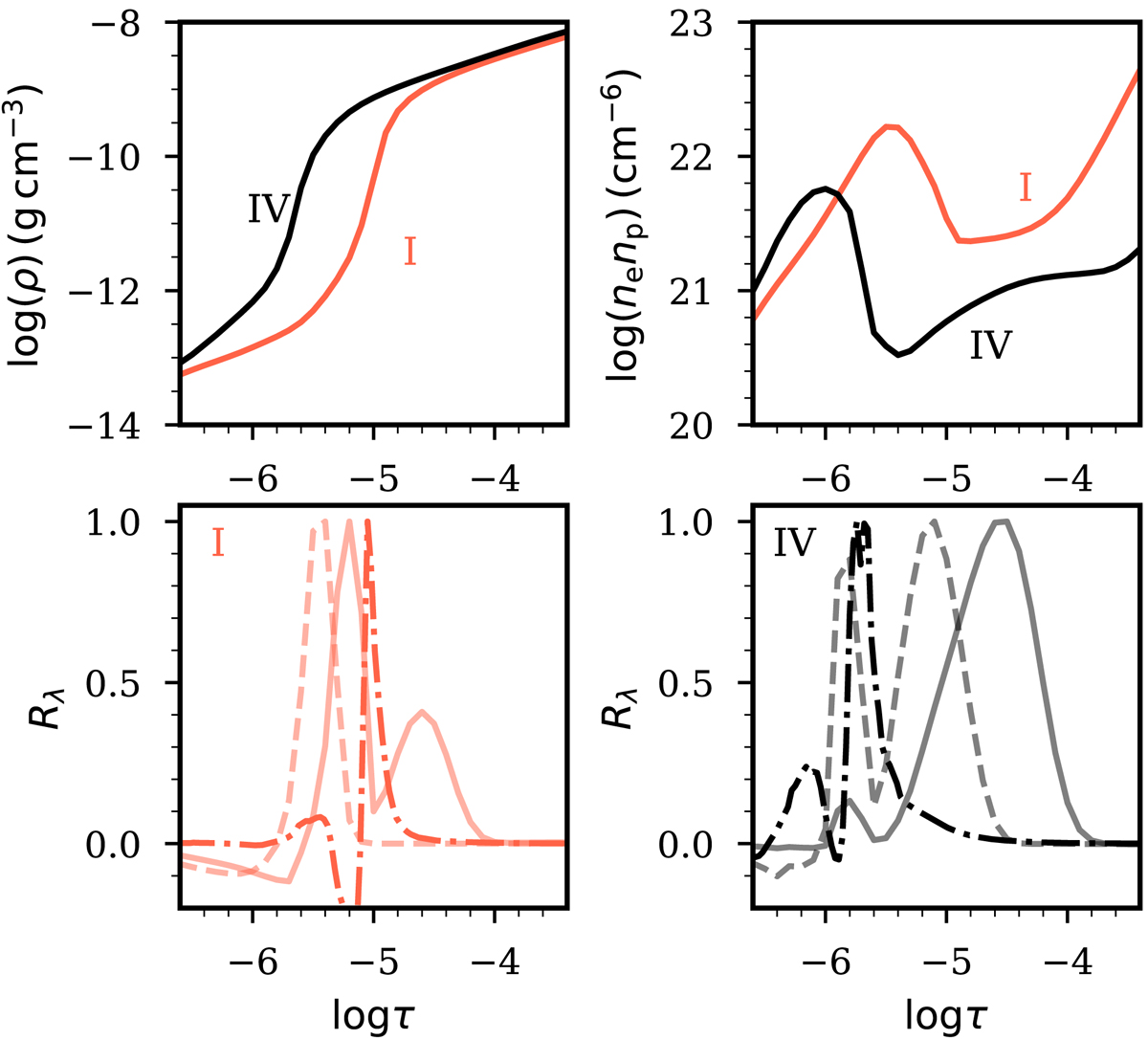

Fig. 9.

Mass density, electron-proton number density and response functions to temperature of the mm-continuum and Mg II h. Top: mass-density and electron-proton number density at the magnetic (I) and non-magnetic locations (IV) marked in Fig. 8. Bottom: normalized response functions of the 1.2 mm (solid) and 3 mm-continuum (dashed) and Mg II h core (dashed-dot) at location I (left) and IV (right).
