Fig. 2.

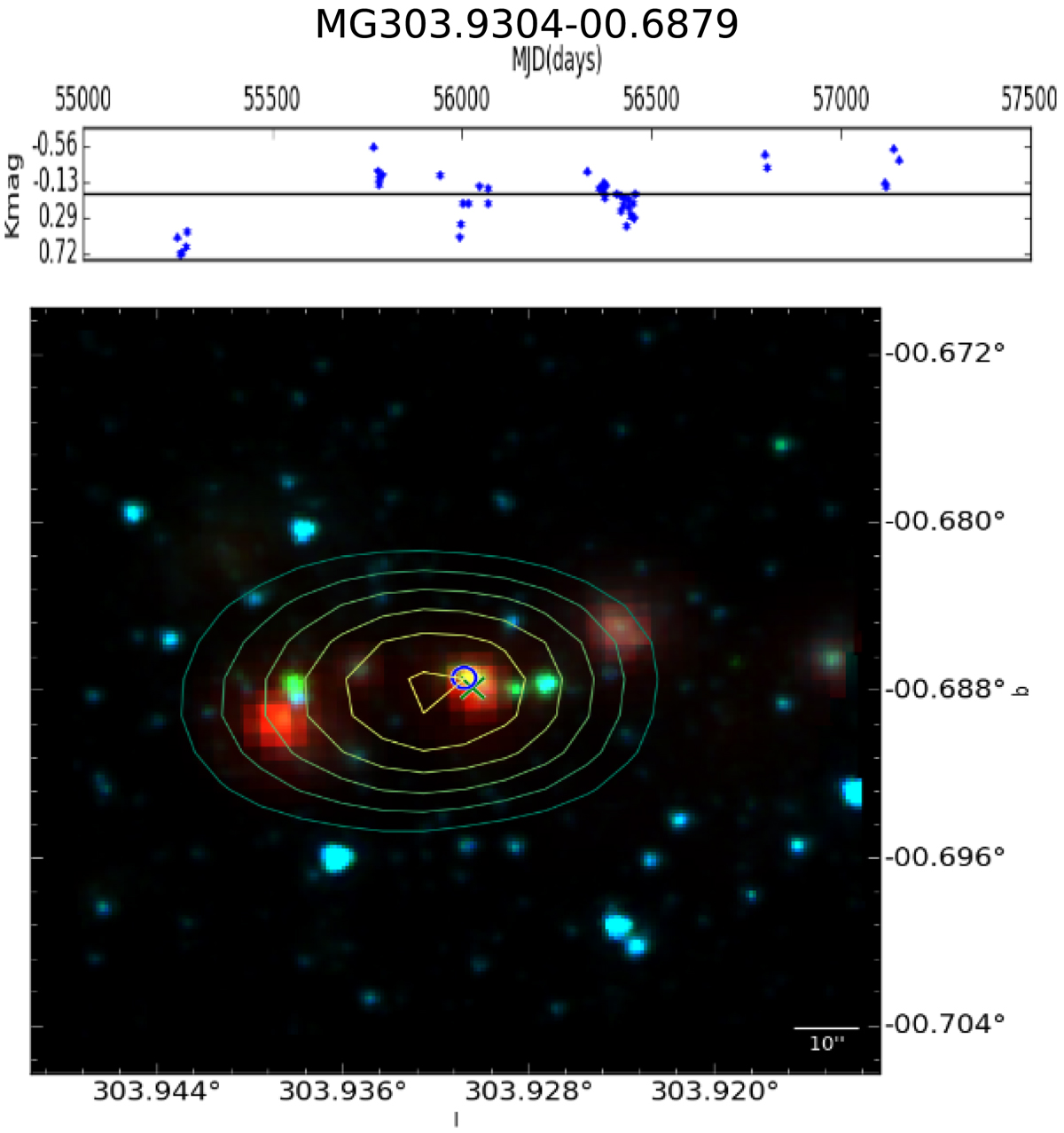

LC of an eruptive event. Top panel: the LC of the source, the error bars represent MAD(ΔSimjd ). Bottom plot: the RGB image of the source using the Spitzer IRAC 3.6 μm, IRAC 4.0 μm, and the 24 μm MIPS band as blue, green and red, respectively. The VVV source is indicated by the blue circle and the green cross represents the MIPS co-ordinates. The contours of the RGB are in the interval of [Peak-5σ, Peak] from the ATLASGAL observation at 850 μm.
