Fig. 4.

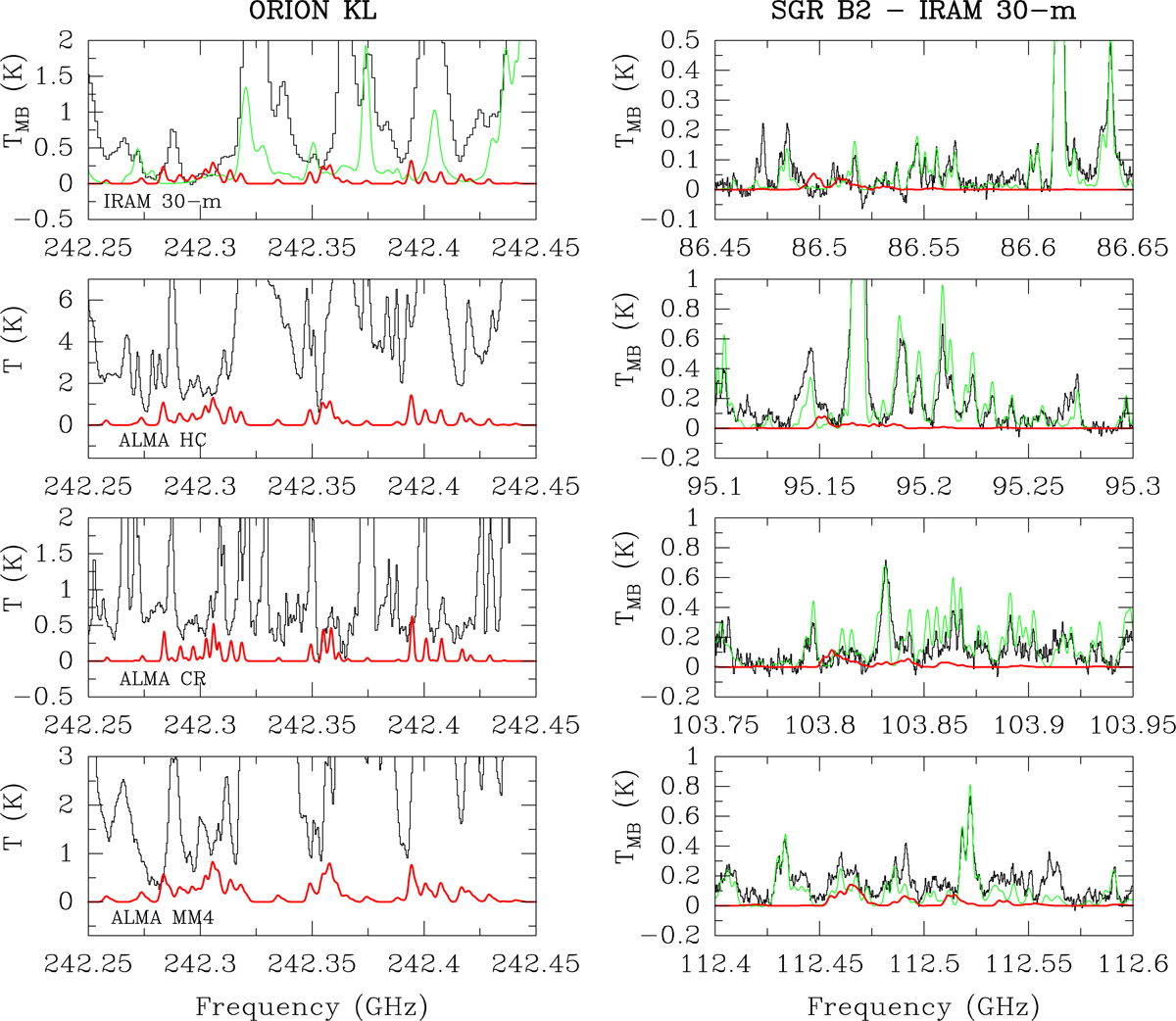

Observed data of Orion KL and Sgr B2 taken with the IRAM 30-m telescope and the ALMA interferometer (histogram black spectrum) together with the synthetic spectra obtained using the column densities given as upper limits in Table 5 (red thin curve). The synthetic total model for the 30 m data of Sgr B2(N) (see Belloche et al. 2013) and Orion KL (see Cernicharo et al. 2016) is overlaid in green. A vLSR of +9.0 km s−1 and +64.0 km s−1 is assumed for Orion KL and Sgr B2, respectively.
