Fig. 6.

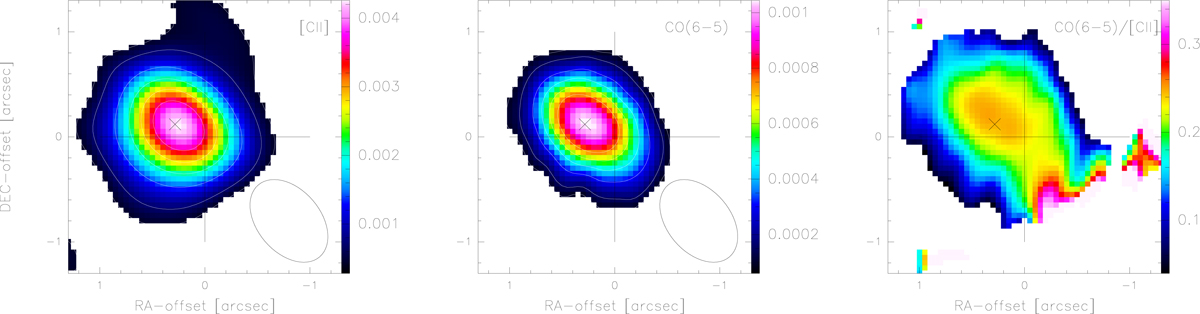

Left panel: [−500,500] km s−1 velocity-integrated [CII] map. The beam is 0.9 × 0.6 arcsec2, at PA = 49 deg. Levels are −3, 3, 5, 10, 15, 20, 25σ, σ = 0.14 mJy beam. Middle panel: velocity-integrated CO(6-5) map. The original angular resolution of CO data was degraded to match the same beam of [CII] data. Levels are −3, 3, 5, 10, 15, 20, 25σ, σ = 27 μJy beam−1. Right panel: velocity-integrated CO(6-5)/[CII] ratio map. The small cross indicates (RA, Dec) = (23:10:38.90, 18:55:19.82). The large cross indicates the phase center.
