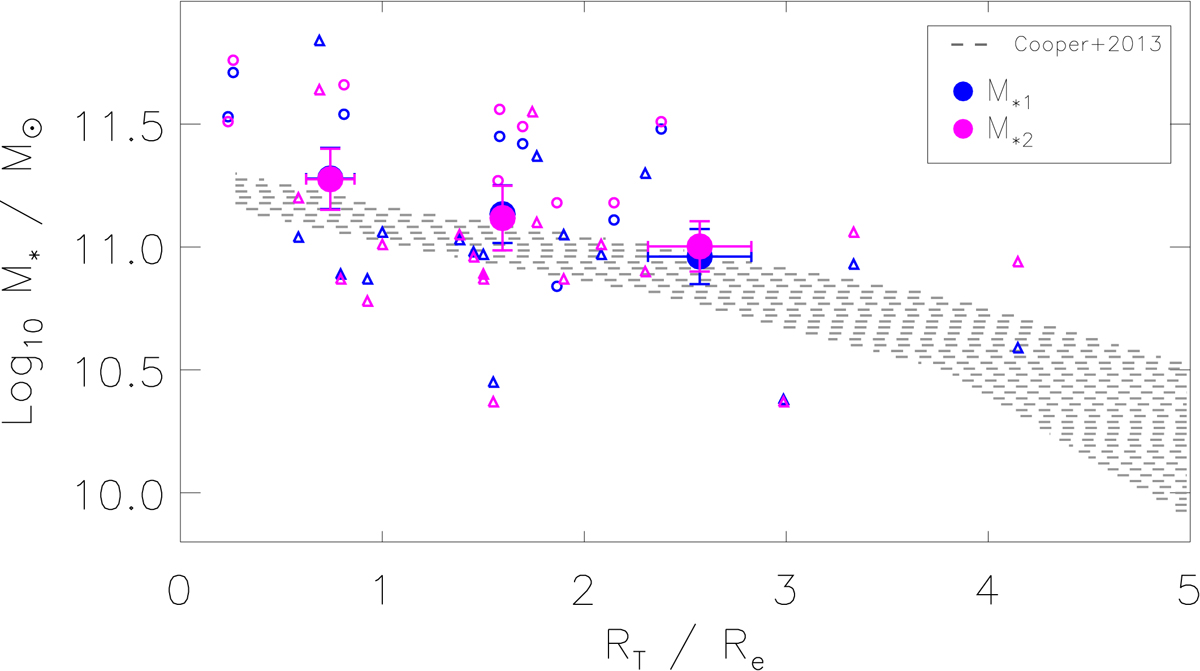

Transition radius in units of R_e versus total stellar mass (open symbols: circles for SRs, triangles for FRs). The full symbols show the same quantities in bins of R_T/R_e. Different colors show the results of two different procedures for calculating the total stellar mass, see Table 2 for details. The shaded region shows the corresponding quantities from the simulations of Cooper et al. (2013), see text.
