Fig. 16

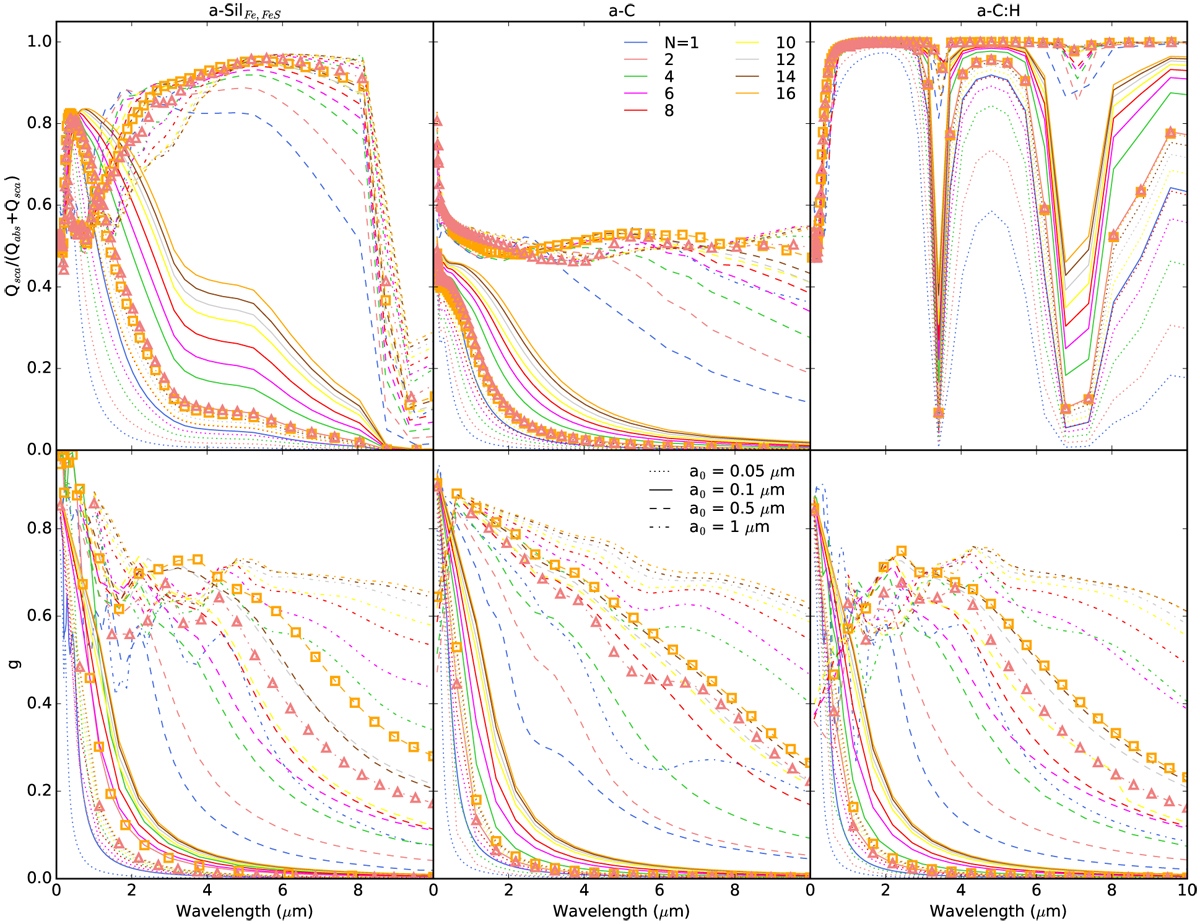

Influence of monomer size and number for a-SilFe,FeS (left panels), a-C (middle panels), and a-C:H (right panels) aggregates made of compact spherical monomers with radius a0 = 0.05 (dotted lines), 0.1 (solid lines), 0.5 (dashed lines), and 1 μm (dot-dashed lines) and N = 1, 2, 4, 6, 8, 10, 12, 14, and 16 monomers plotted in blue, pink, green, fuchsia, red, yellow, silver, brown, and orange, respectively. Top panels: Qsca∕(Qabs + Qsca). Bottom panels: g = ⟨cos θ⟩. Aggregates with N = 16 and a0 = 0.05 and 0.5 μm are also highlighted with triangles, while aggregates with N = 2 and a0 = 0.1 and 1 μm are highlighted with squares.
