Fig. 10

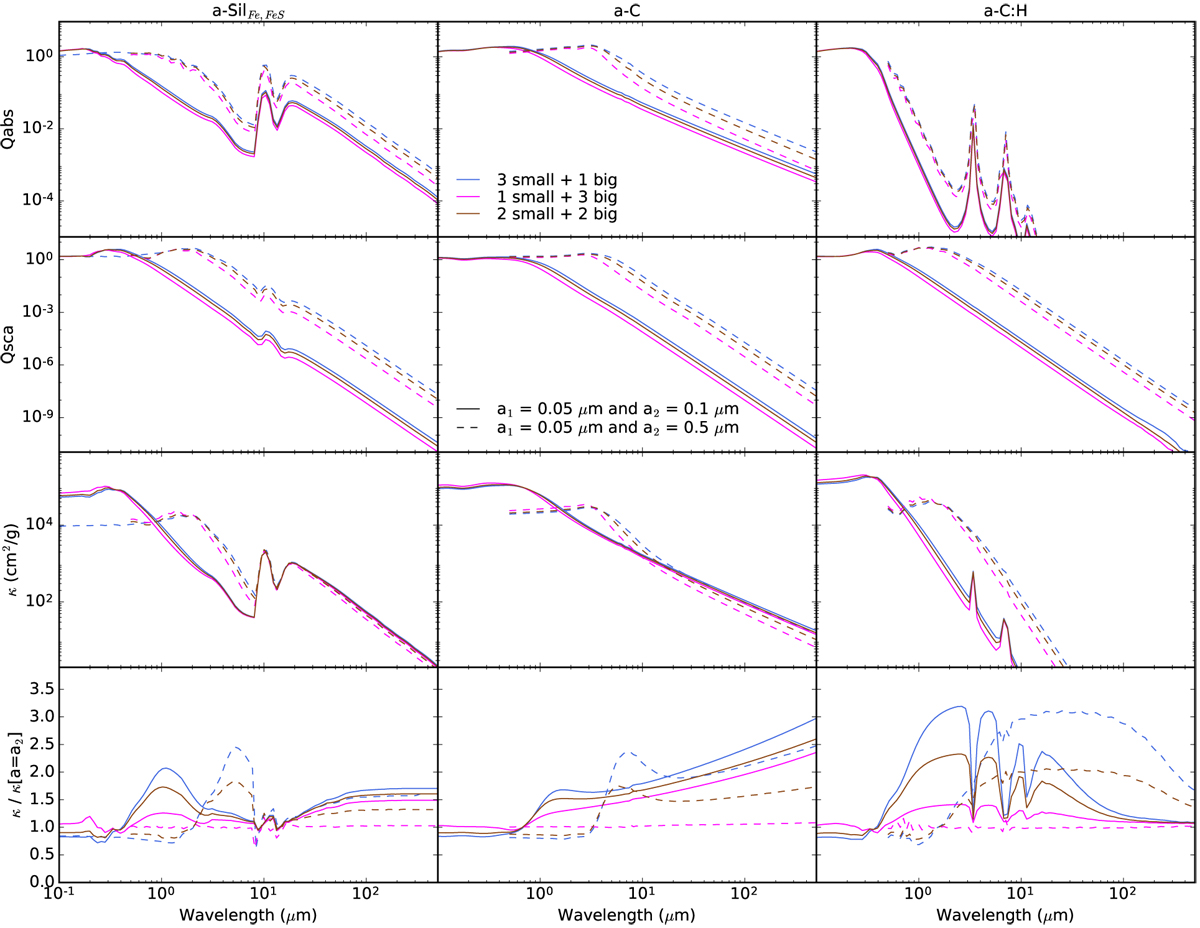

a-SilFe,FeS (left panels), a-C (middle panels), and a-C:H (right panels) aggregates made of compact spherical monomers with radius a1 = 0.05 μm and a2 = 0.1 (solid lines) or 0.5 μm (dashed lines), and N = 4. Plotted in blue are the results for aggregates made of three grains with a0 = a1 and one grain with a0 = a2, in fuchsia one grain with a0 = a1 and three grains with a0 = a2, and in green two grains of each radius. Top to bottom panels: Qabs(a2, λ), Qsca (a2, λ), κ(a2, λ), and the ratioof the latter to κ(a = a2) for an isolated compact spherical grain with radius a = a2.
