Fig. 4

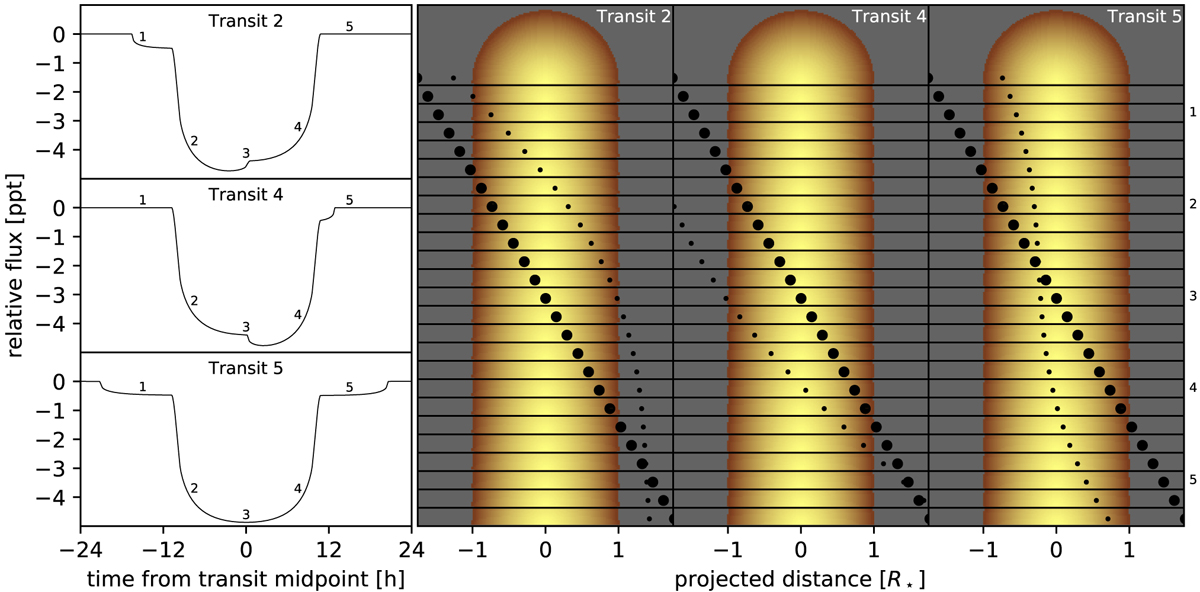

Left panel: example of a simulated planet–moon transit light curve for transits 2, 4, and 5 using the nominal parameterization given in Table 1. The relative flux is the difference to the out-of-transit model flux and is givenin parts per thousand (ppt). Right panel: visualization of the orbital configurations during transits 2 (left column), 4 (center column), and 5 (right column). Labels 1–5 in the light curves refer to configurations 1–5 (see labels along the vertical axis). An animated version of this figure is available online.
