Fig. 13

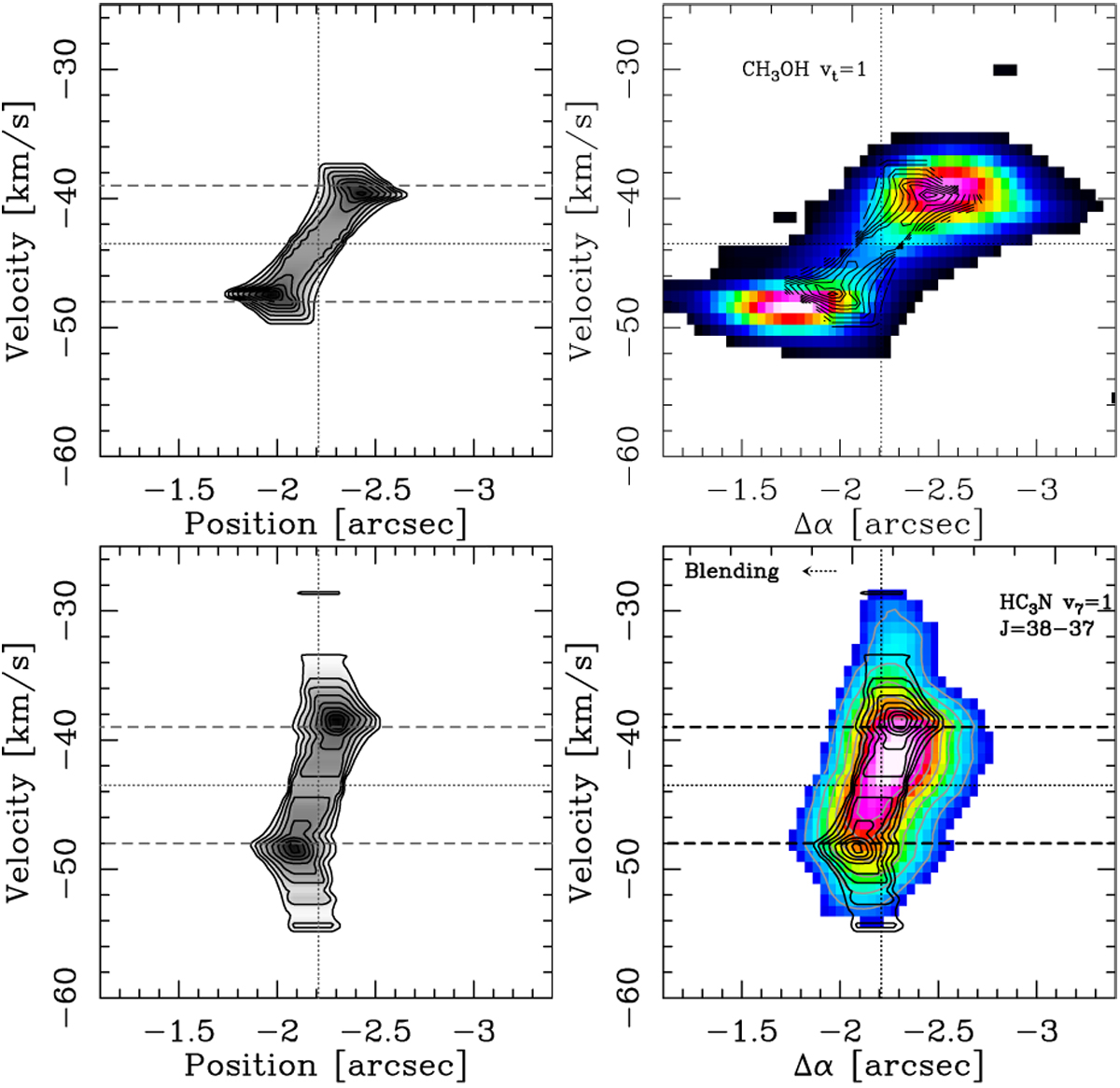

Left column: pv-diagram of models with a rotating ring with vr ~ r (top panel), and with a disc in Keplerian rotation (bottom panel). Right column: colour scale showing the zeroth-moment maps for the 334.42 GHz CH3OH vt = 1 line (top panel) and the 346.456 GHz HC3N v7 = 1 line (bottom panel). Contours are the same as in the left column and show the model prediction.
